P0010

DTC P0010

DTC Detecting Condition and Trouble Area

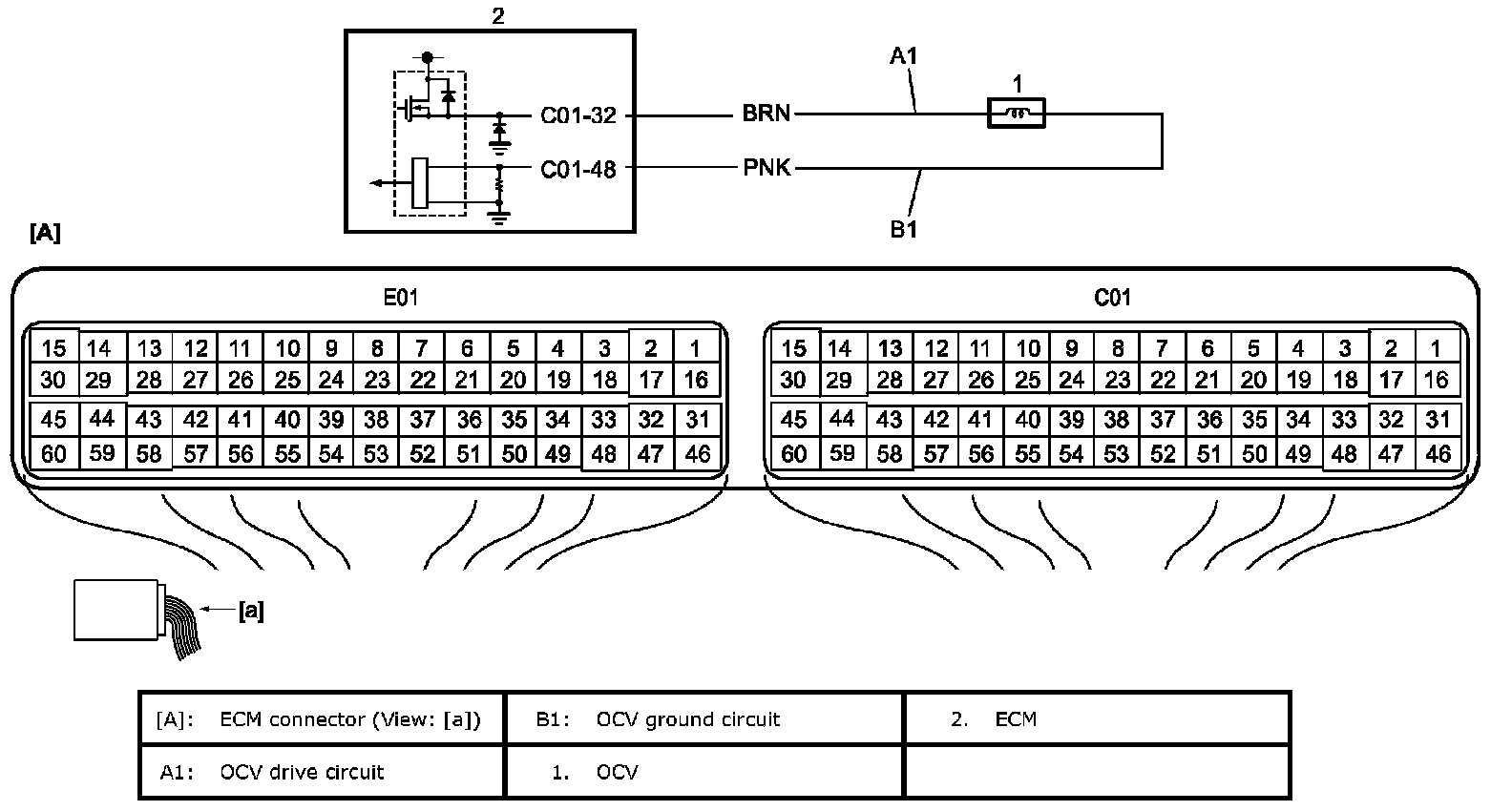

Circuit Diagram

Circuit Diagram:

DTC Confirmation Procedure

WARNING:
- Perform road test in a place where there is no traffic to prevent an accident.
- Road test should be performed by two persons, a driver and a tester, on a level road.

NOTE:
Confirm that the following conditions are met in this "DTC Confirmation Procedure".
- Battery voltage >= 11 V

1. Connect scan tool with ignition mode of keyless push start system in "OFF".
2. Warm up engine to normal operating temperature.
3. Drive vehicle for 5 sec. at throttle opening 30% or more checking the opening with scan tool.

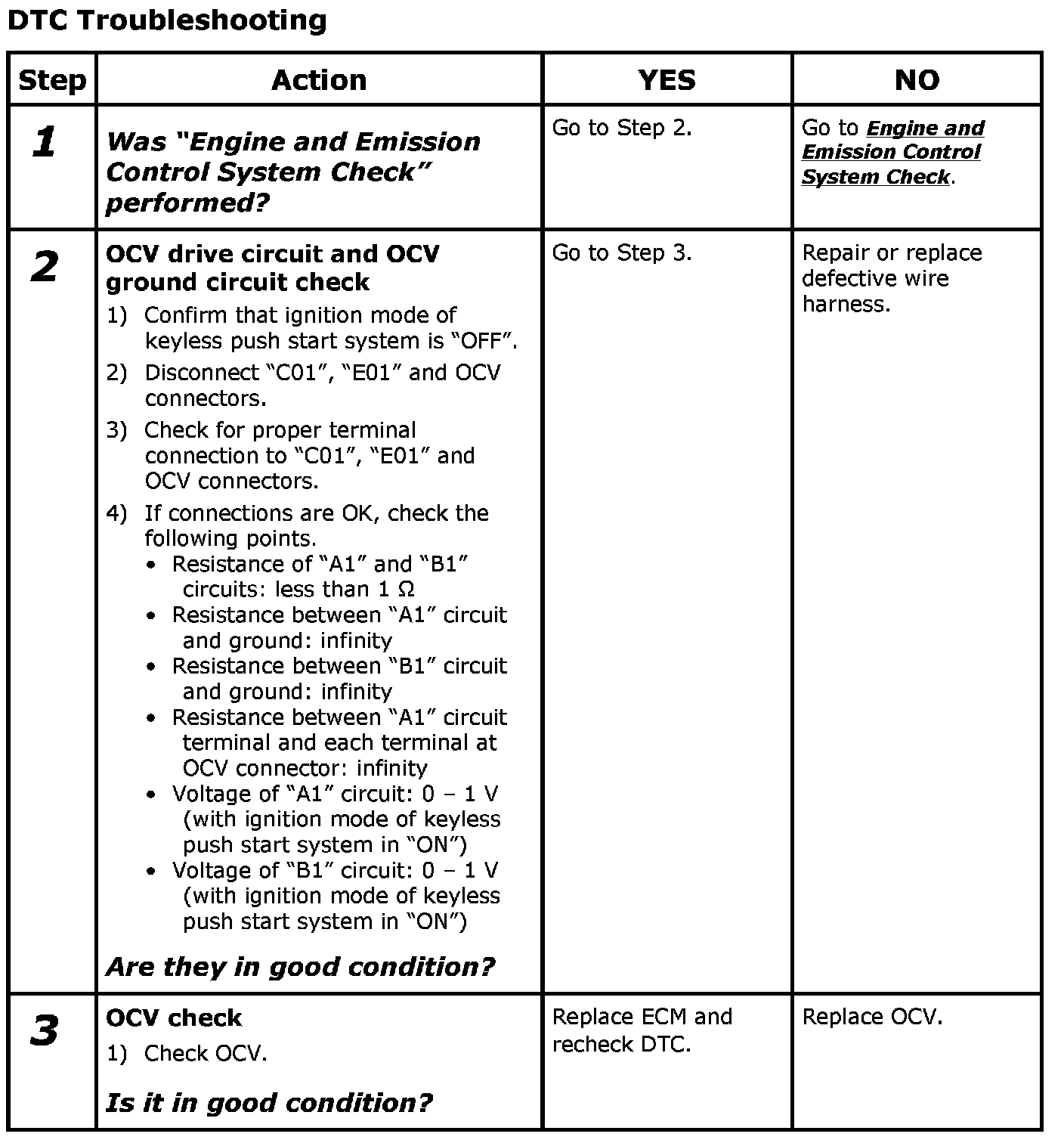

DTC Troubleshooting

Step 1-3:
