Control Systems - Body Electrical Control System

Fail-Safe Table

When DTC is detected, BCM changes fail-safe mode as long as malfunction continues to exist but that mode is canceled when BCM recovers normal condition.

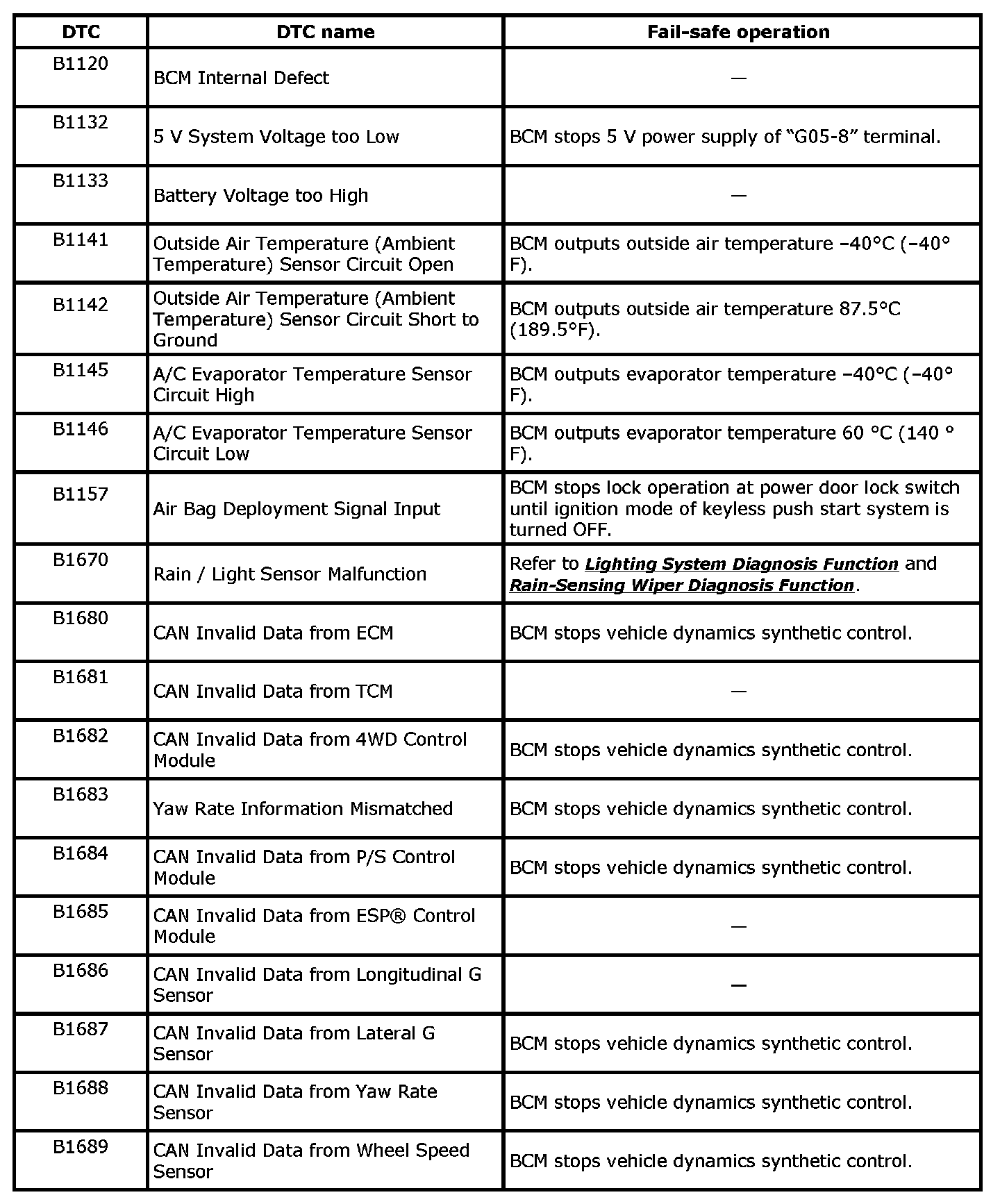

B1120-B1689:

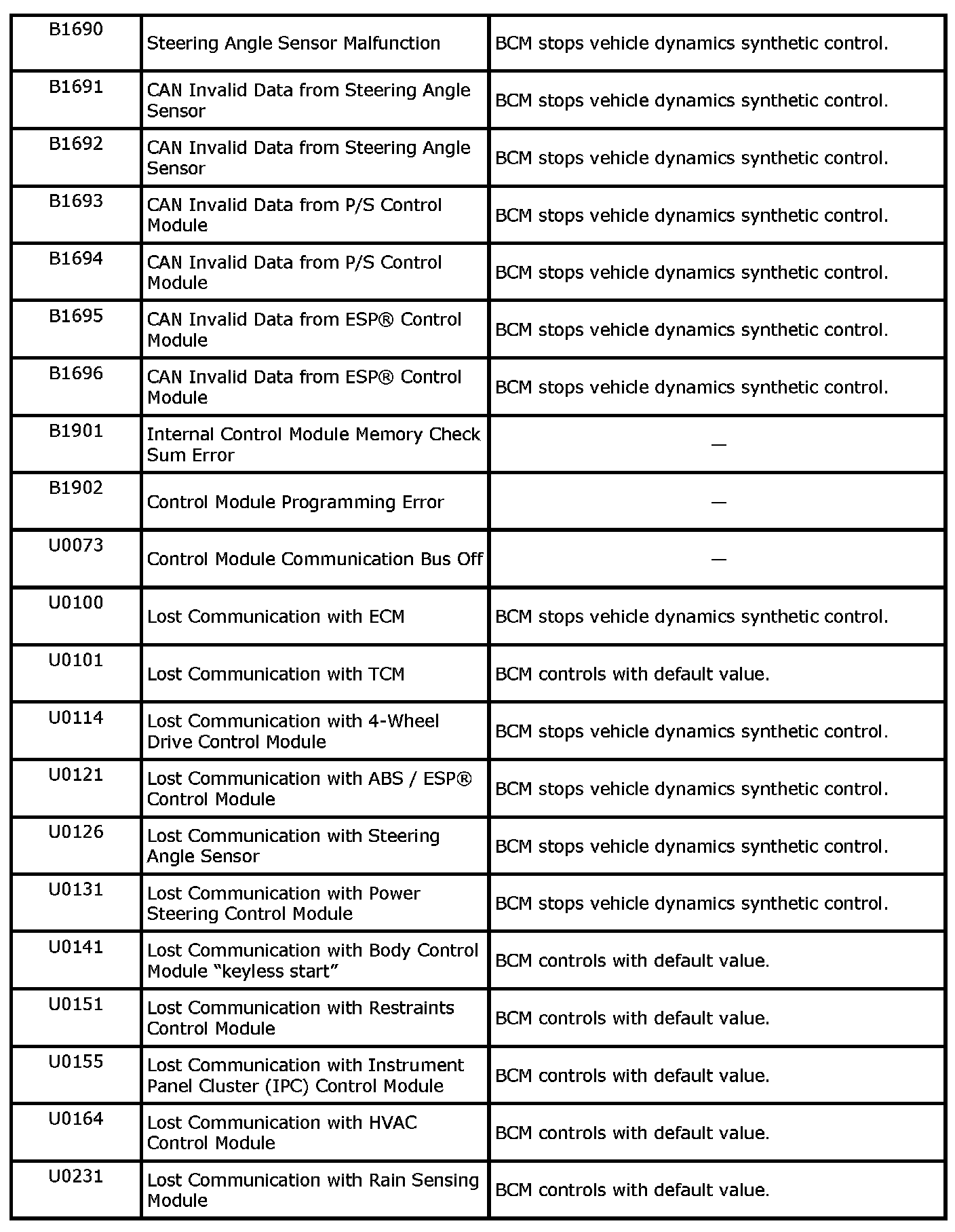

B1690-B1902 / U0073-U0231:
