Control Systems - Body Electrical Control Systems

DTC Table

NOTE:
- The DTC No. with asterisk (*) does not memorize history DTC.
- When BCM detects DTC B1120, display "SERVICE BCM SYSTEM" on the information display in combination meter to warn the driver.

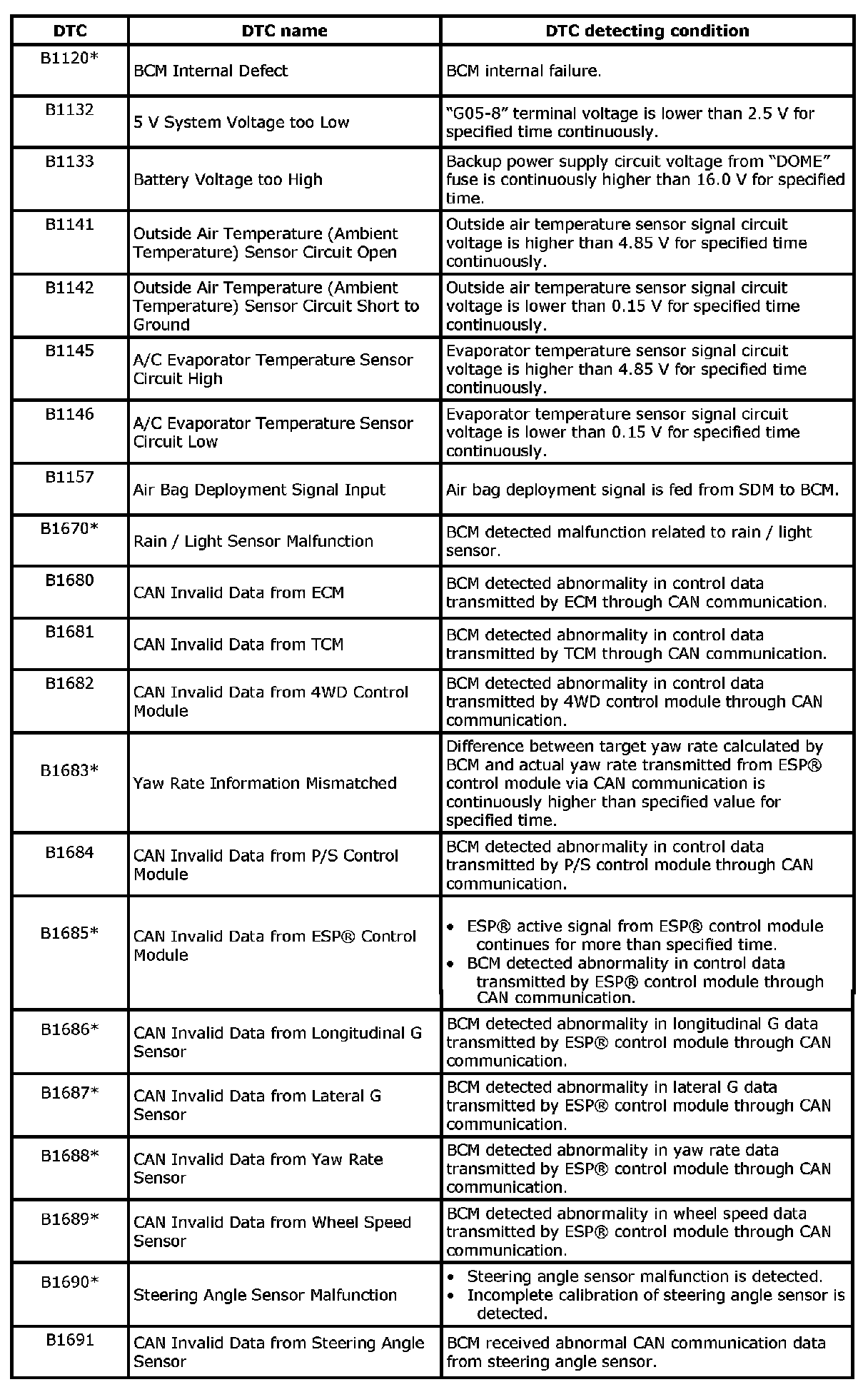

B1120-B1691:

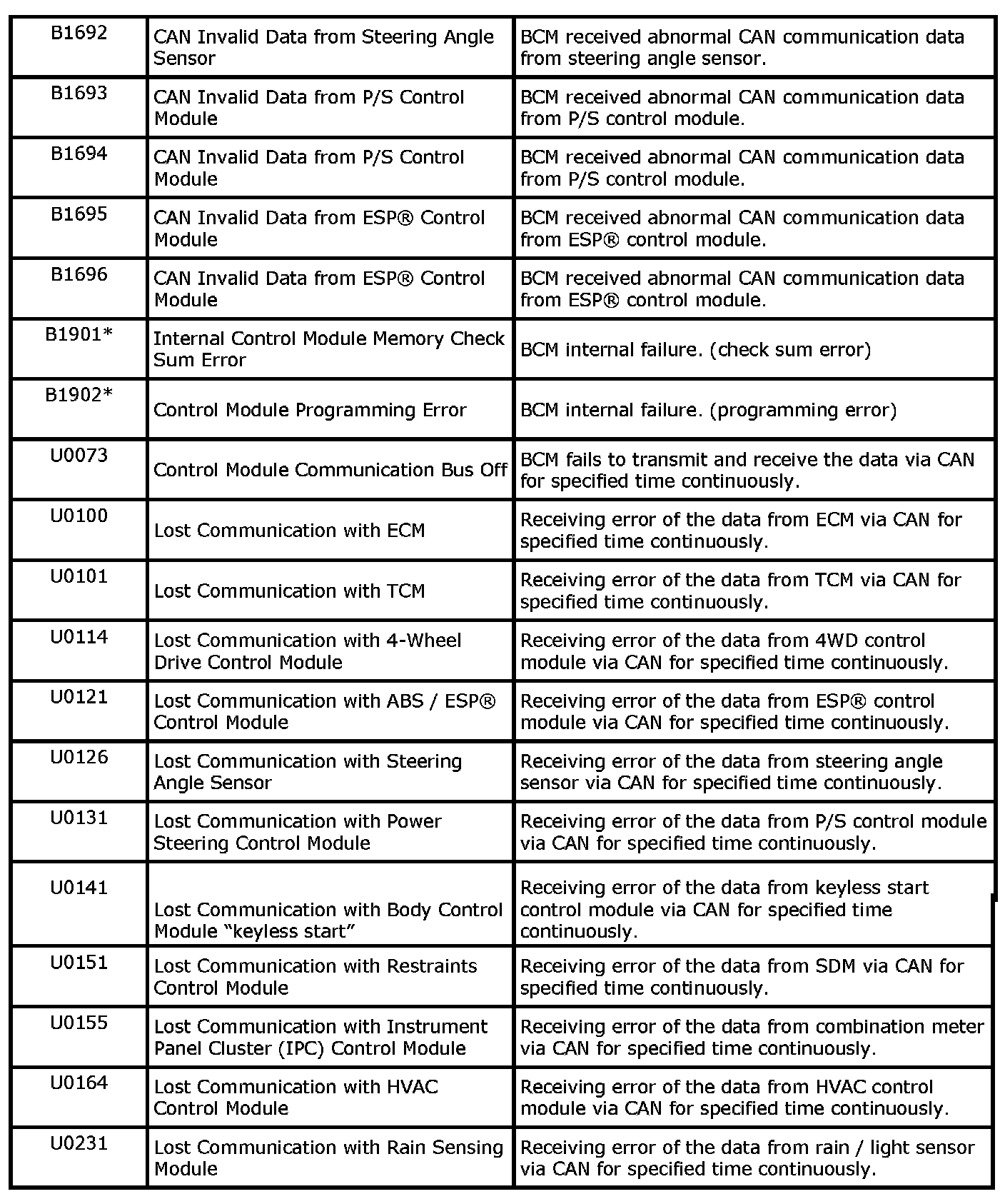

B1692-B1902 / U0073-U0231:
