C1250

DTC C1250 / C1251

DTC Detecting Condition and Trouble Area





Circuit Diagram








DTC Confirmation Procedure
1) Clear DTC.
2) Push engine switch to change ignition mode to "ON".
3) Check DTC.

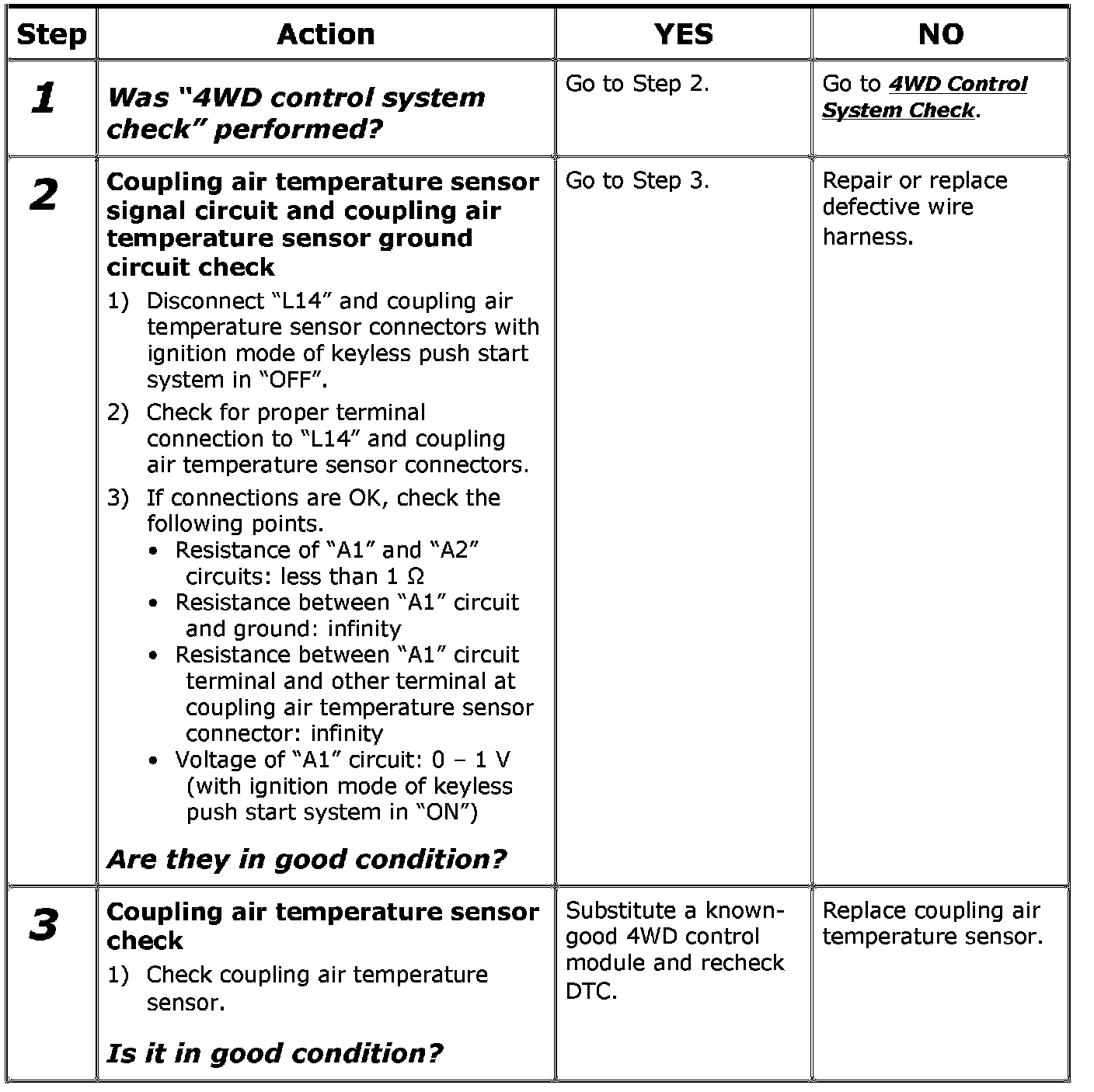

DTC Troubleshooting

Step 1-3:
