C1111

DTC C1111 / C1113 / C1115 / C1116

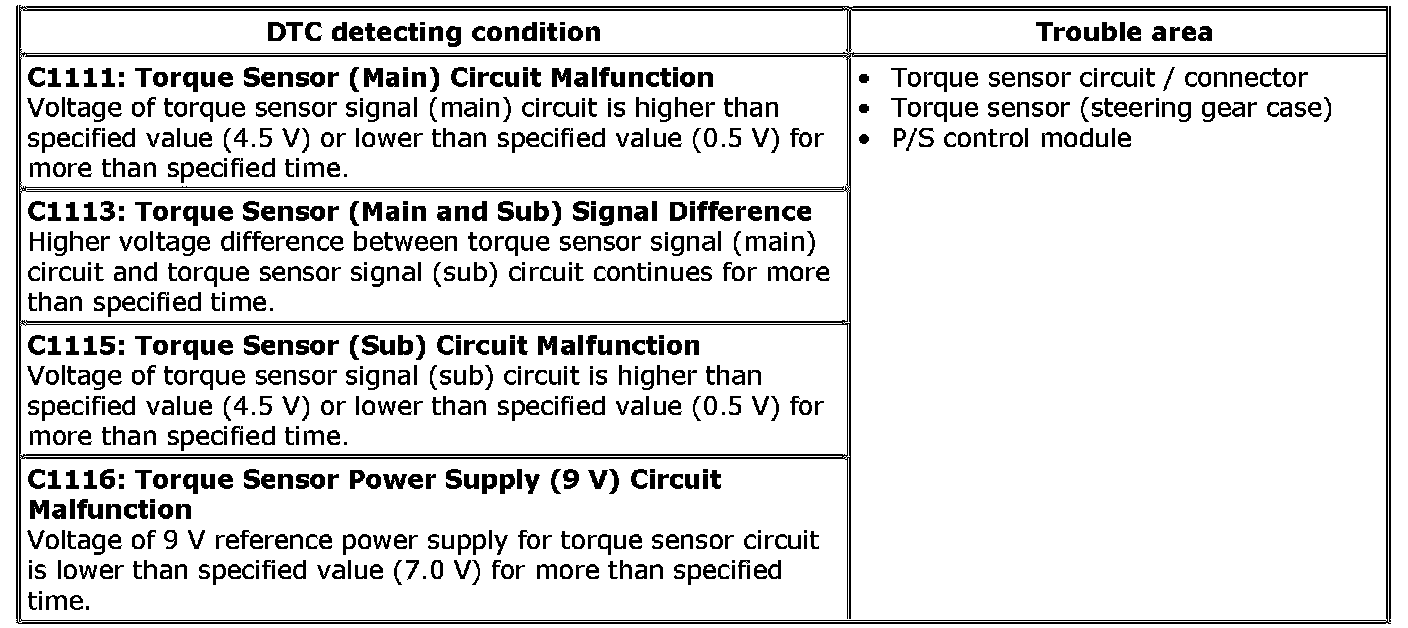

DTC Detecting Condition and Trouble Area





Circuit Diagram








DTC Confirmation Procedure
Upon completion of initial check, turn steering wheel in both directions (fully when stopped and turning while driving).

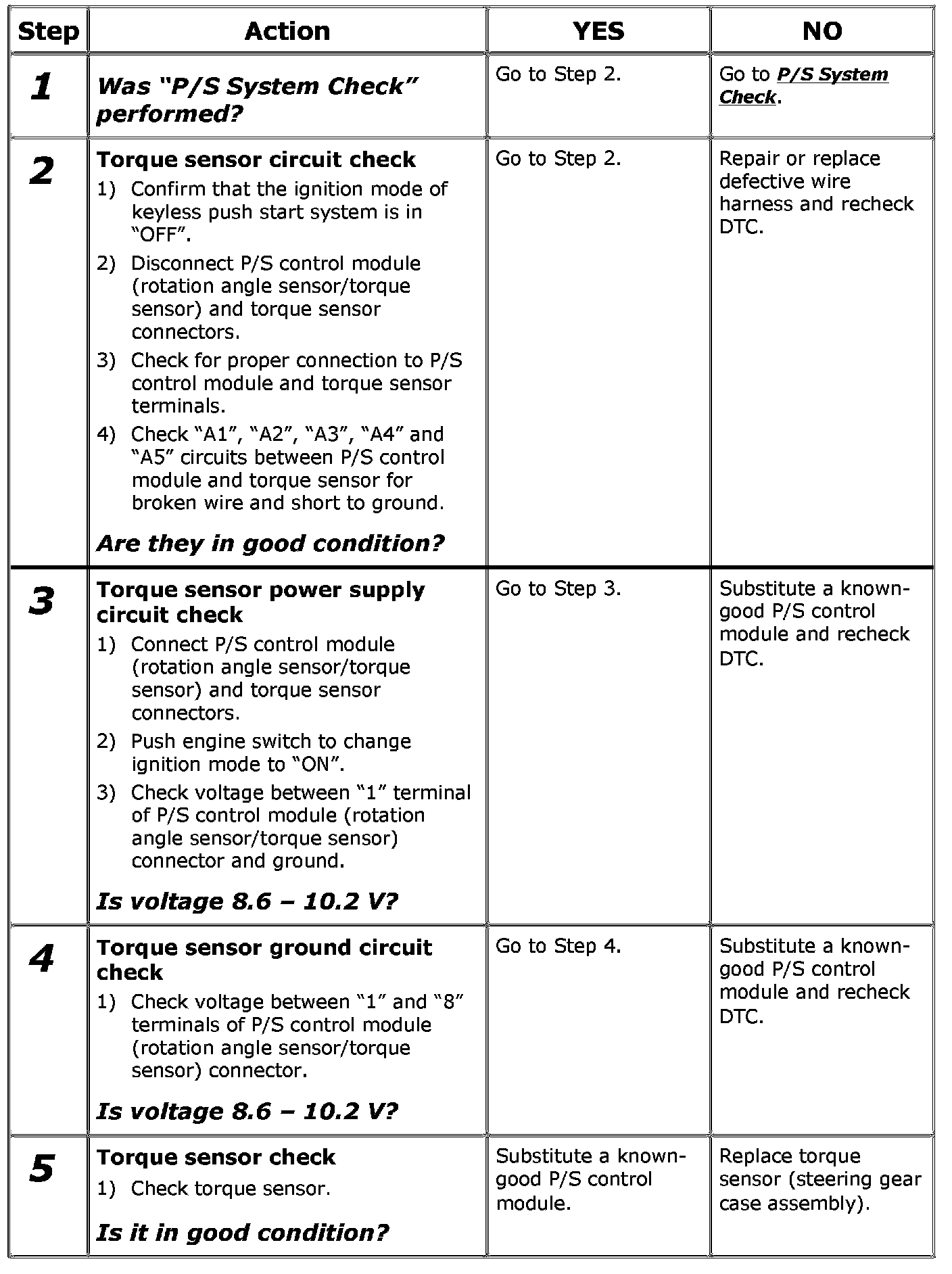

Troubleshooting

Step 1-5:
