B1683

DTC B1683

DTC Detecting Condition and Trouble Area







DTC Confirmation Procedure
1. Push engine switch to change ignition mode to "ON" and leave ignition mode in "ON" for 1 min. or more.

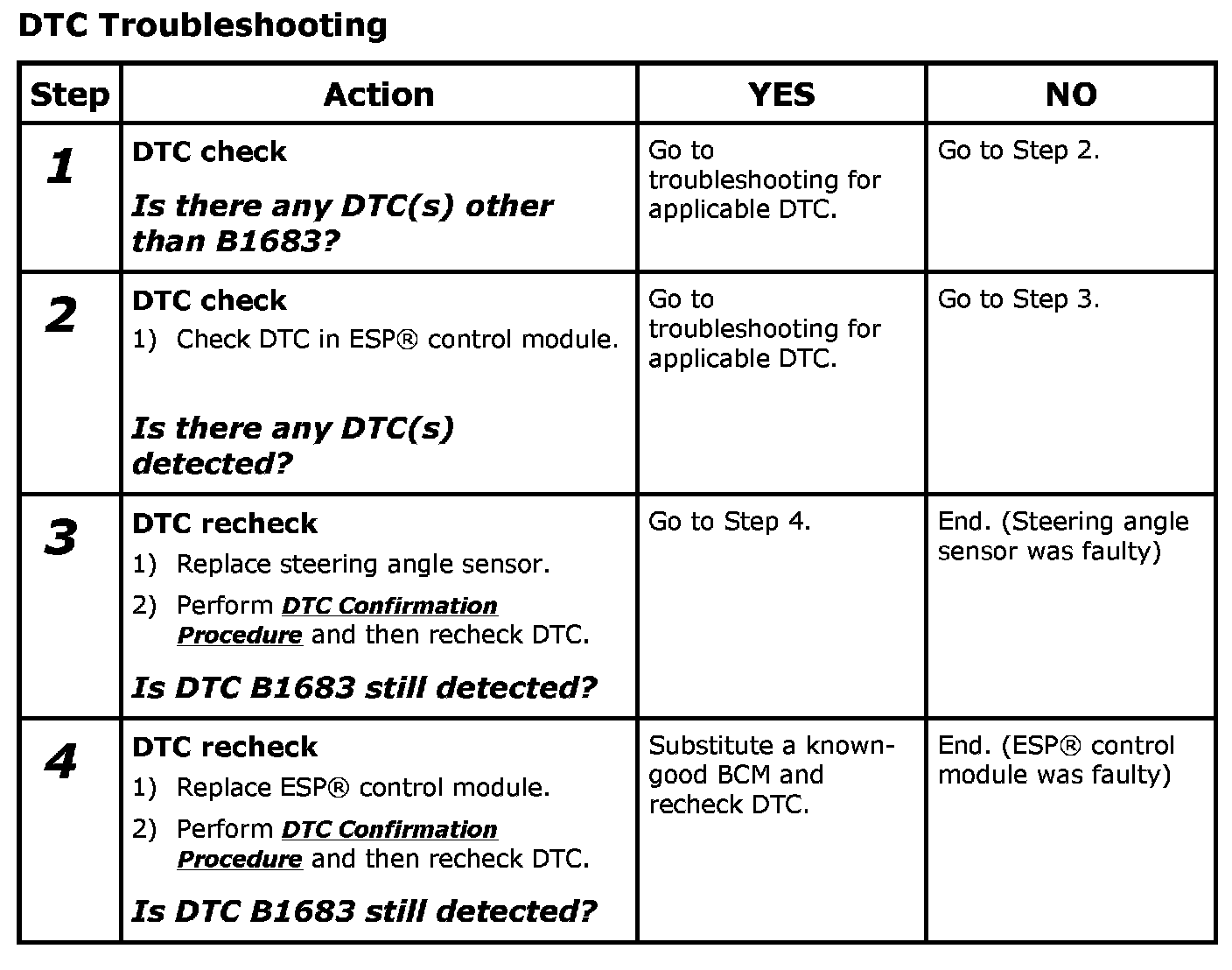

DTC Troubleshooting


Step 1-4:
