B1237

DTC B1233 / B1237

DTC Detecting Condition and Trouble Area

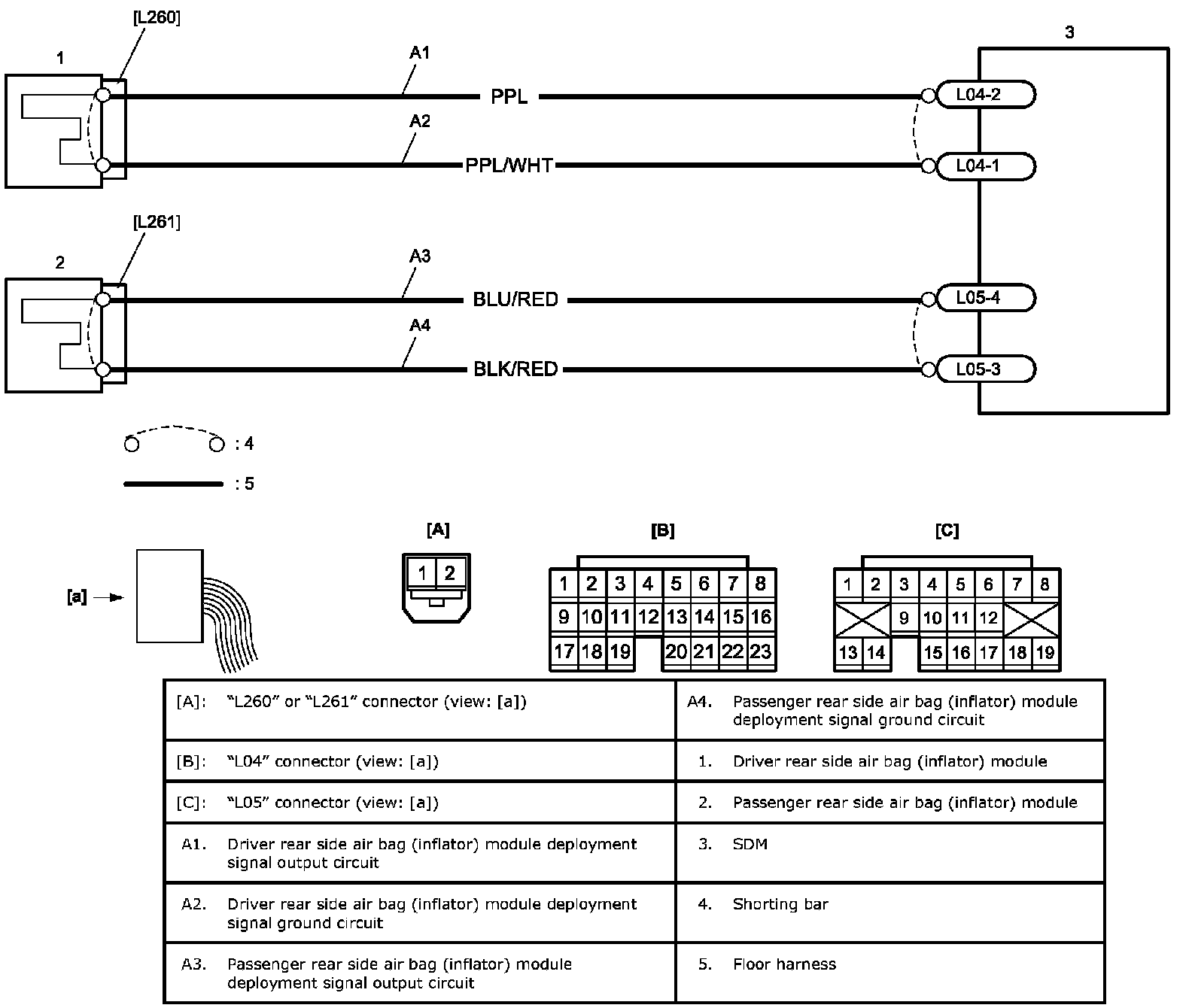

Circuit Diagram

Circuit Diagarm:

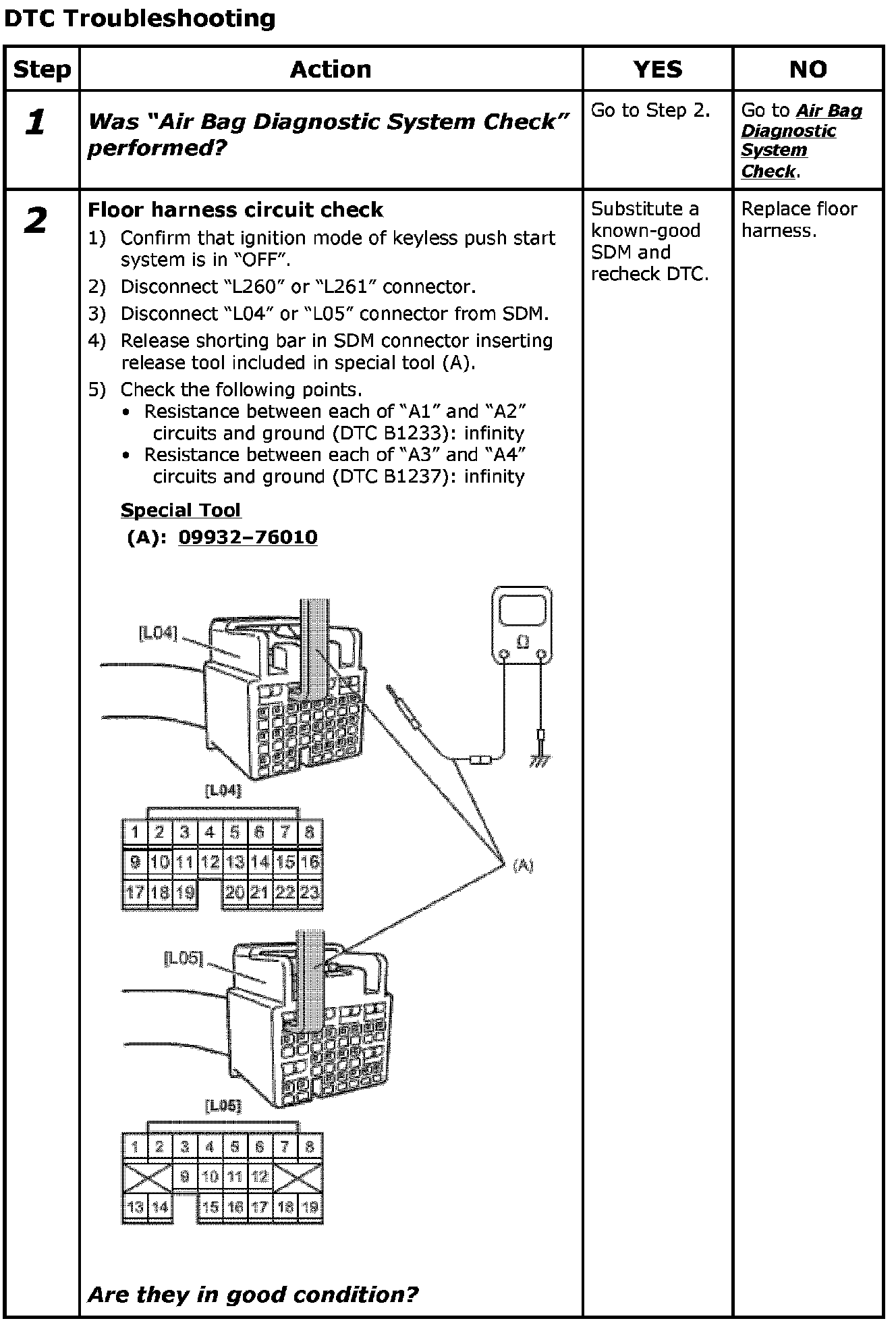

DTC Troubleshooting

Step 1-2:

NOTE:
Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components and ensure all components are properly mounted.
- Clear DTCs, referring to DTC Clearance DTC Clearance if any DTC is detected.
- Repeat Air Bag Diagnostic System Check Air Bag Diagnostic System Check to confirm that the trouble has been solved.
