B1192

DTC B1192

DTC Detecting Condition and Trouble Area

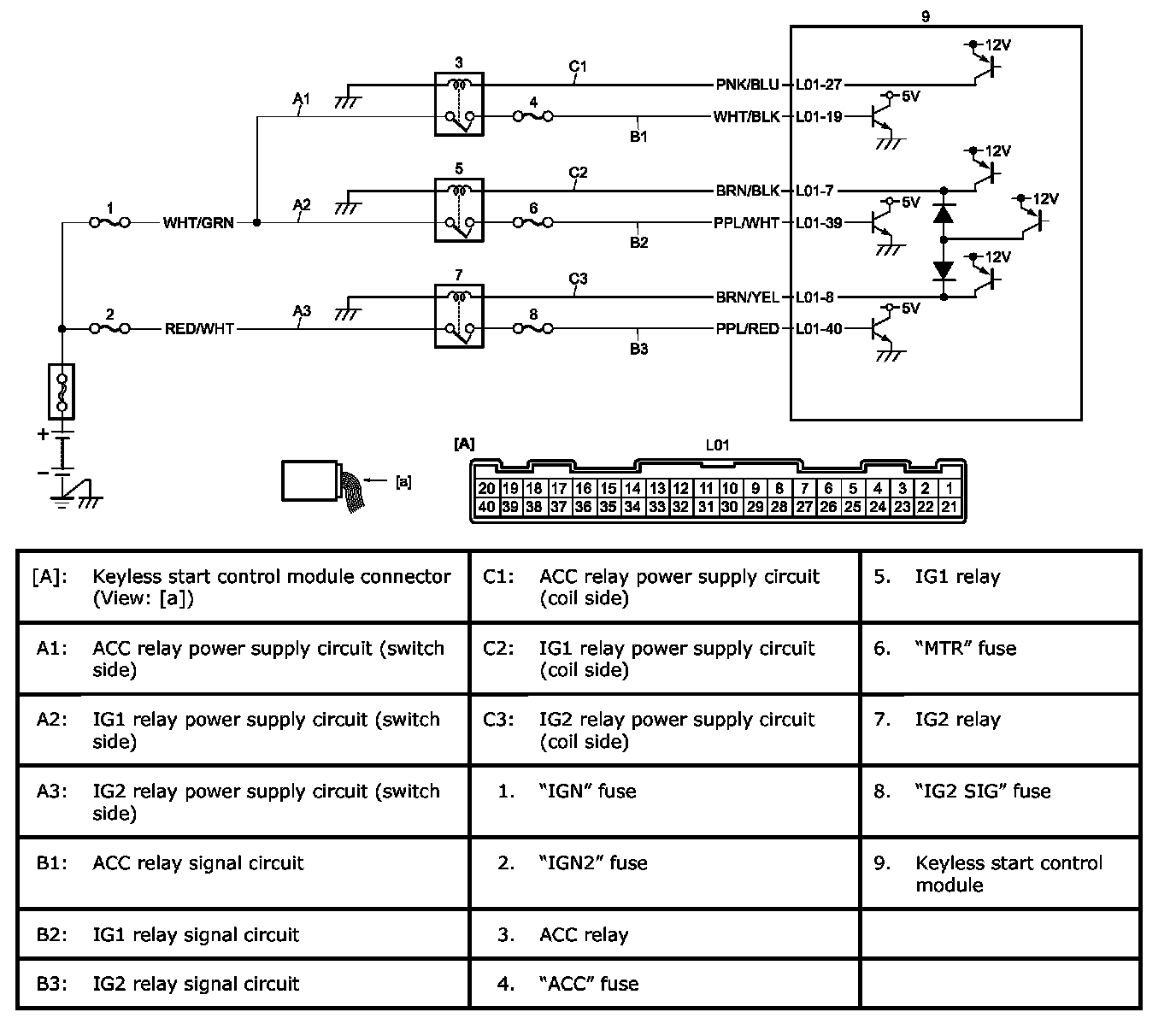

Circuit Diagram

Circuit Diagram:

DTC Confirmation Procedure
1. Confirm that ignition mode of keyless push start system is "OFF".
2. Push engine switch to change ignition mode to "ACC".
3. Push engine switch to change ignition mode to "ON".
4. Repeat Step 1 through 3 several times.

DTC Troubleshooting

NOTE: This DTC might be detected when battery is run down or the voltage is very low.

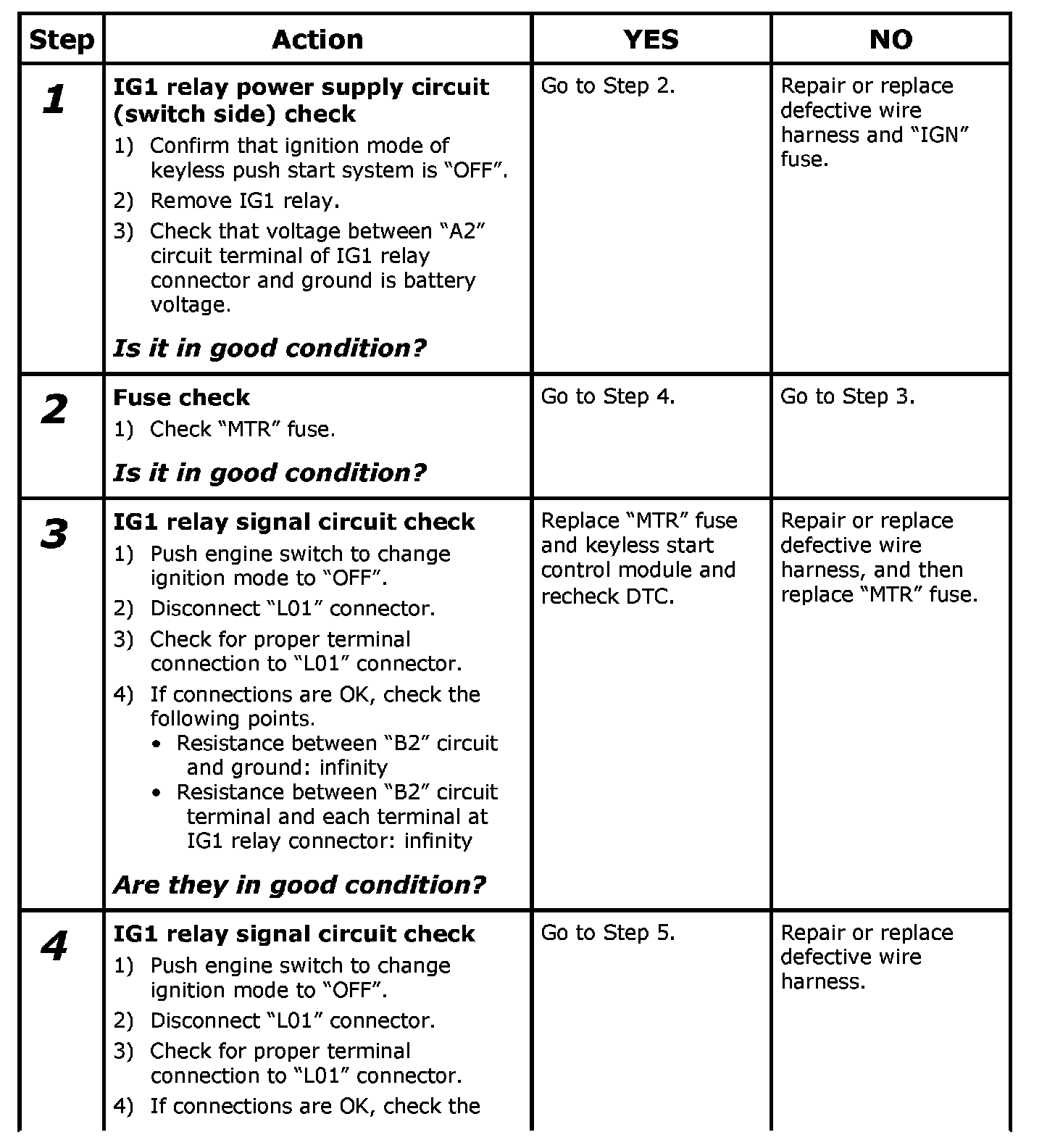

Step 1-4:

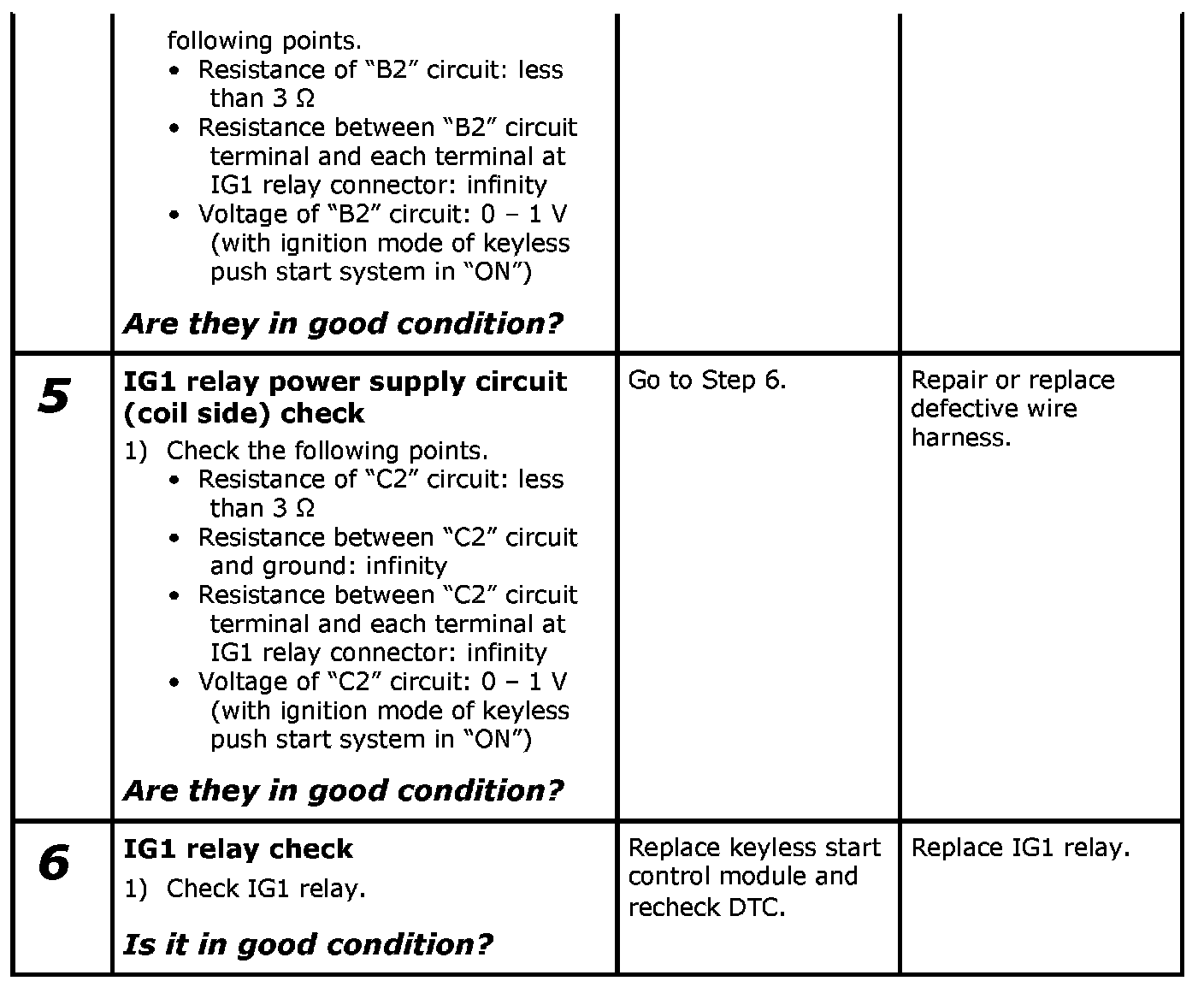

Step 4 (Continued)-6:
