B1189

DTC B1189

DTC Detecting Condition and Trouble Area







Circuit Diagram


Circuit Diagram:






DTC Confirmation Procedure

1. Remove remote controller battery.
2. Touch remote controller to engine switch and change ignition mode to "ON".

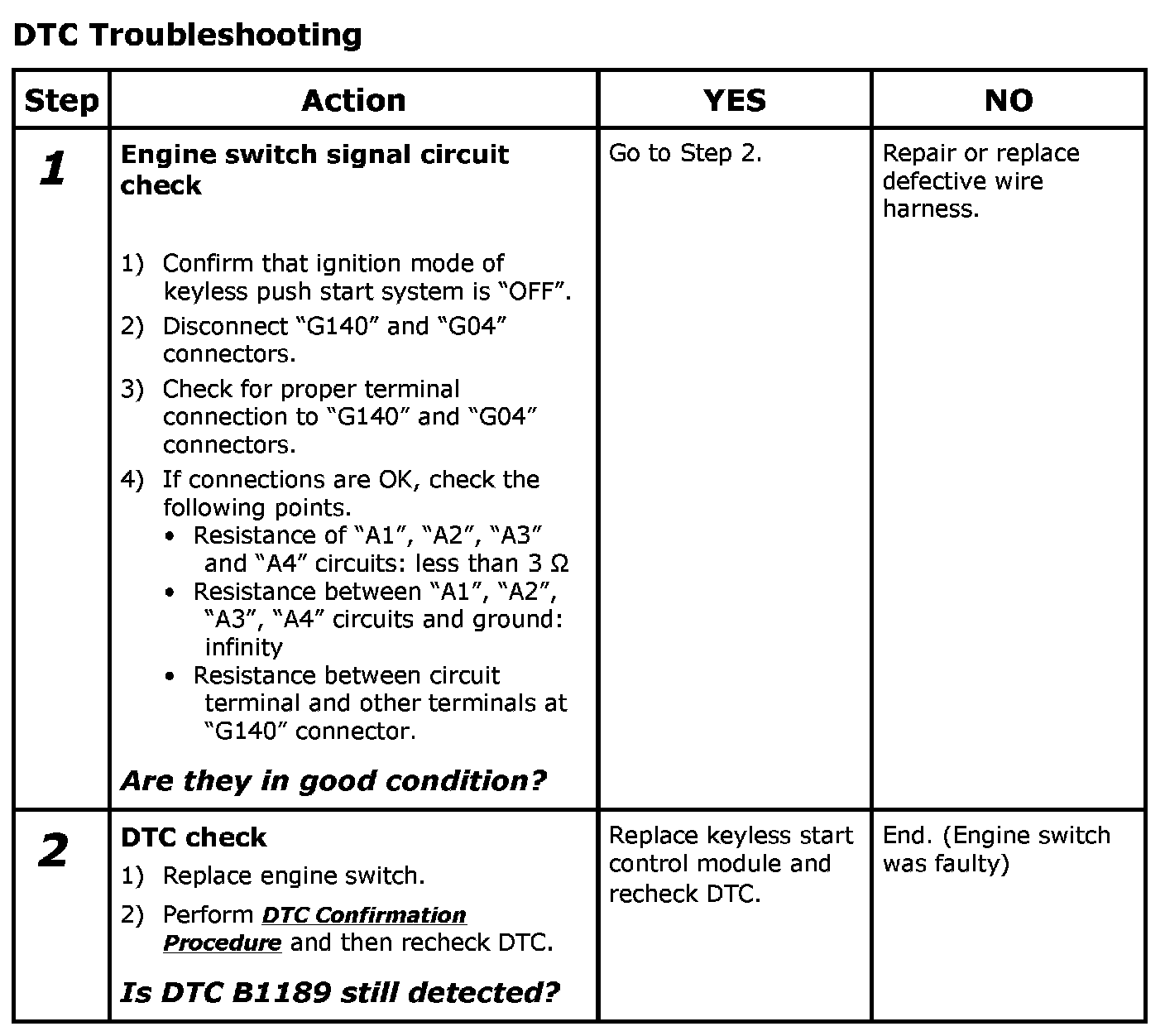

DTC Troubleshooting


Step 1-2:
