B1180

DTC B1180 / B1181 / B1182

DTC Detecting Condition and Trouble Area







Circuit Diagram

Circuit Diagram:

DTC Confirmation Procedure
1. Push engine switch to change ignition mode to "ON".
2. Push request switch related to DTC.
3. Release request switch.
4. Keep ignition mode in "ON" for 10 minutes or more.

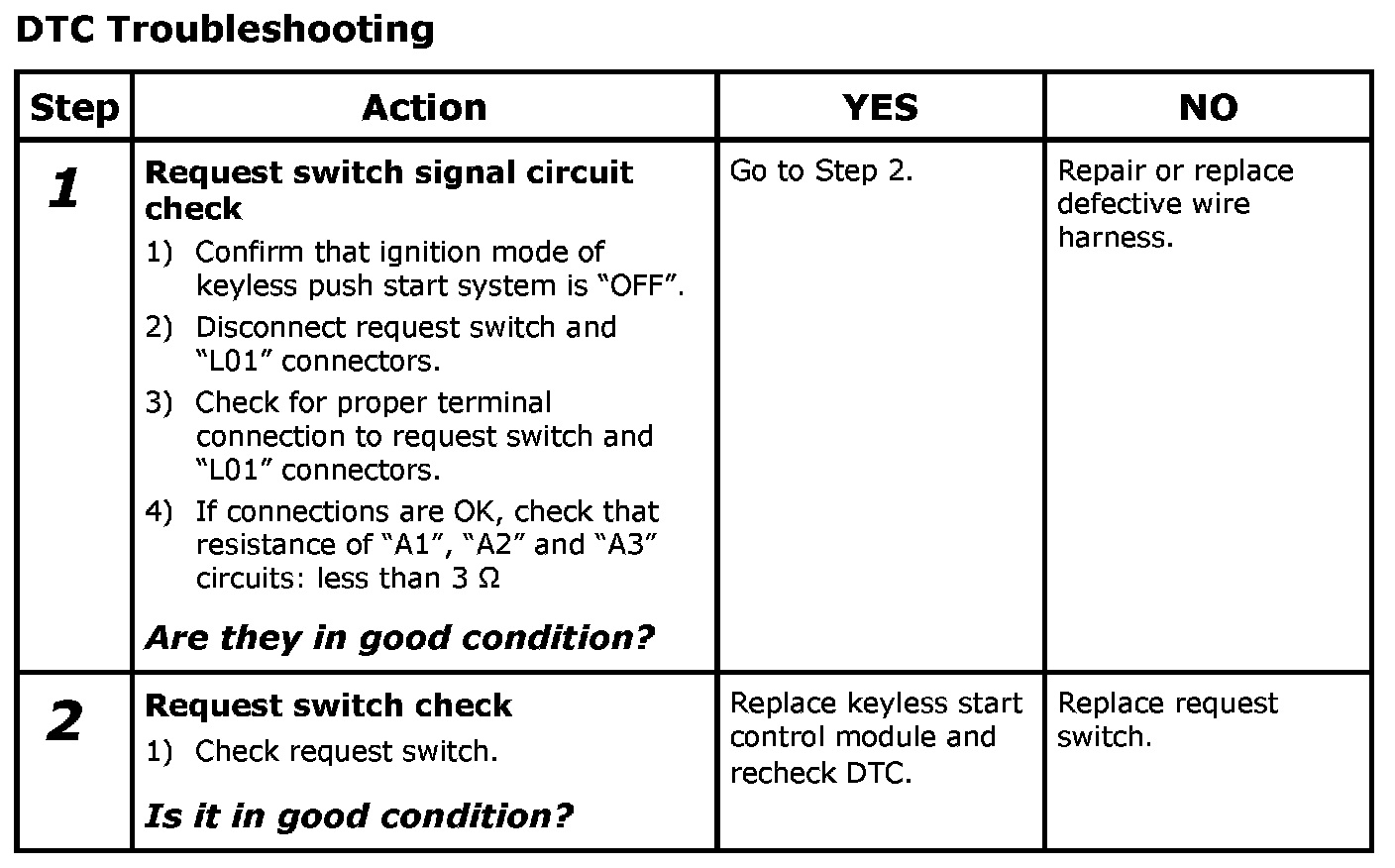

DTC Troubleshooting

Step 1-2:
