B1162

DTC B1162

DTC Detecting Condition and Trouble Area







Circuit Diagram

Circuit Diagram:

DTC Confirmation Procedure
1. Set steering wheel in straight-ahead position.
2. Push engine switch to change ignition mode to "OFF".
3. Push engine switch to change ignition mode to "ON".
4. Repeat Step 2 and 3 several times.

DTC Troubleshooting

NOTE: This DTC might be detected when battery is run down or the voltage is very low.

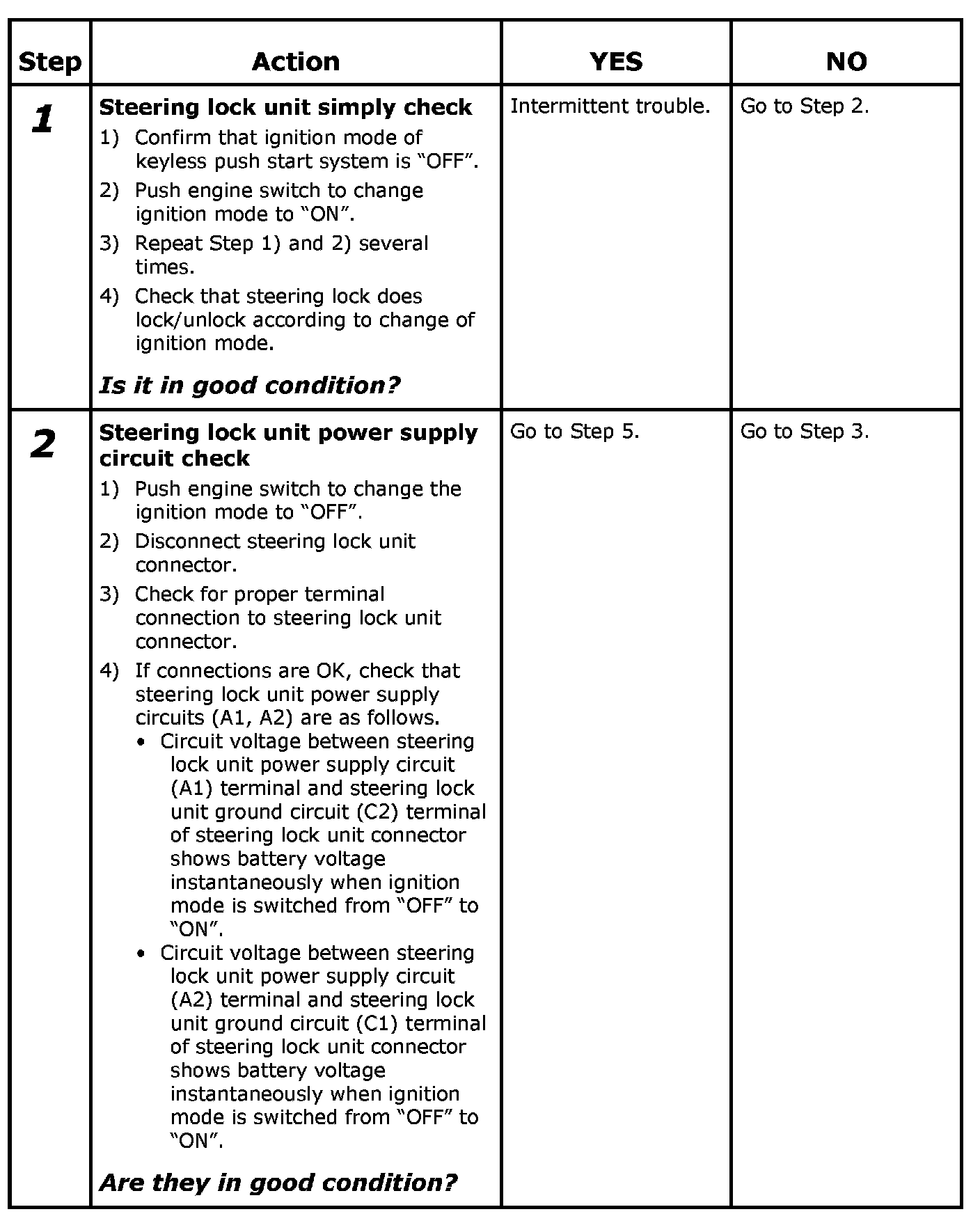

Step 1-2:

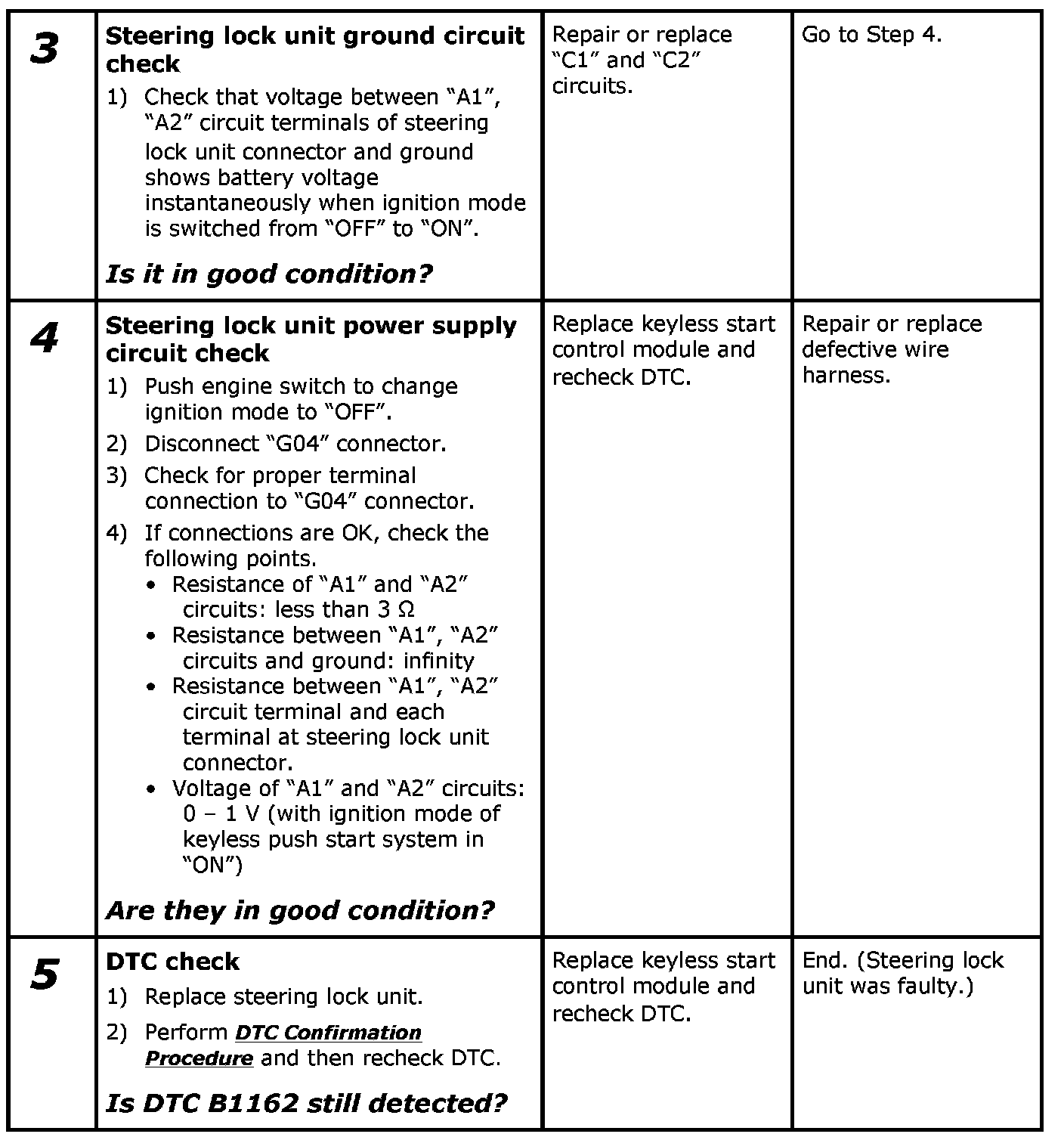

Step 3-5:
