B1126

DTC B1126

DTC Detecting Condition and Trouble Area







Circuit Diagram


Circuit Diagram:






DTC Confirmation Procedure
1. Drive vehicle at 10 km/h (16 mph) or more for 1 minute.

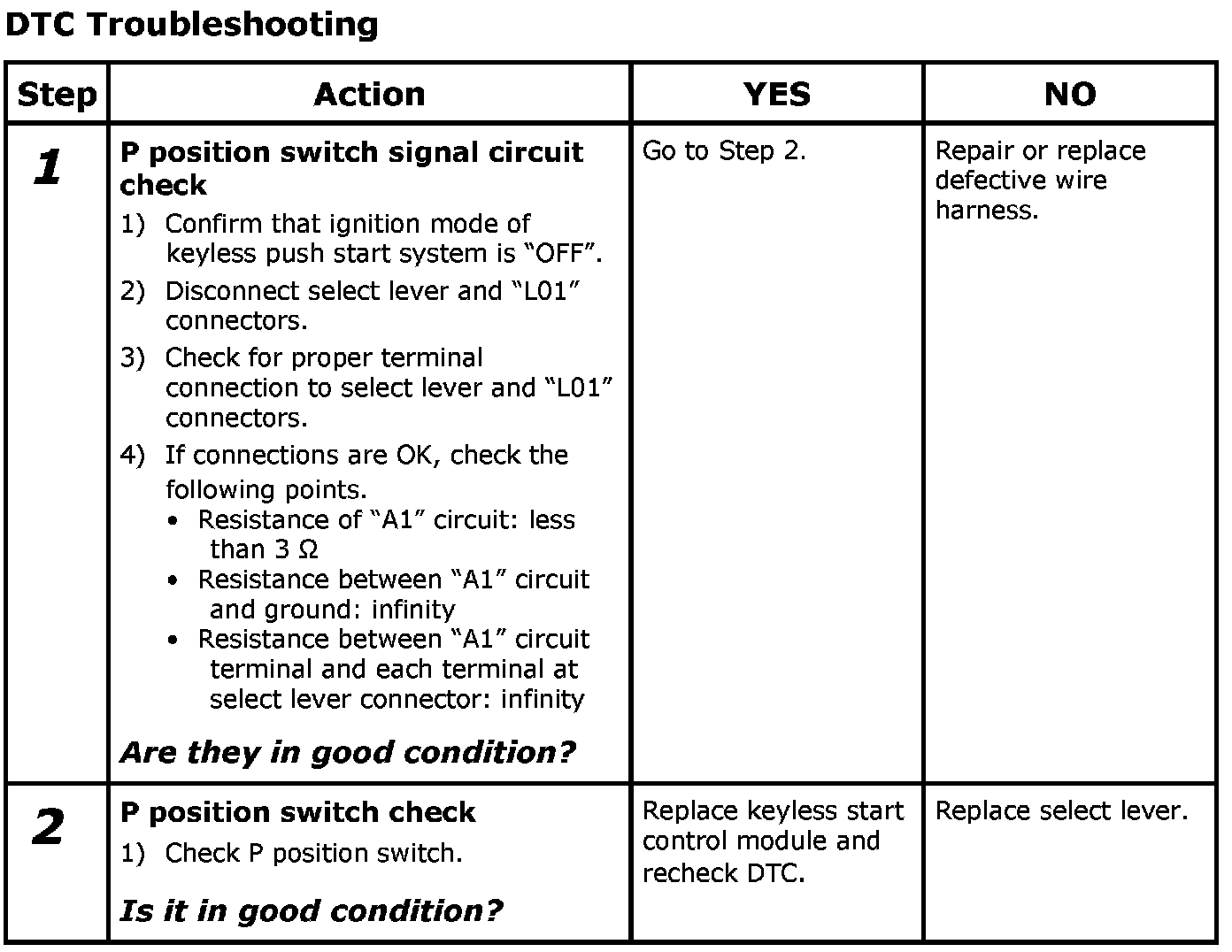

DTC Troubleshooting


Step 1-2:
