B1038

DTC B1034 / B1038

DTC Detecting Condition and Trouble Area






Circuit Diagram

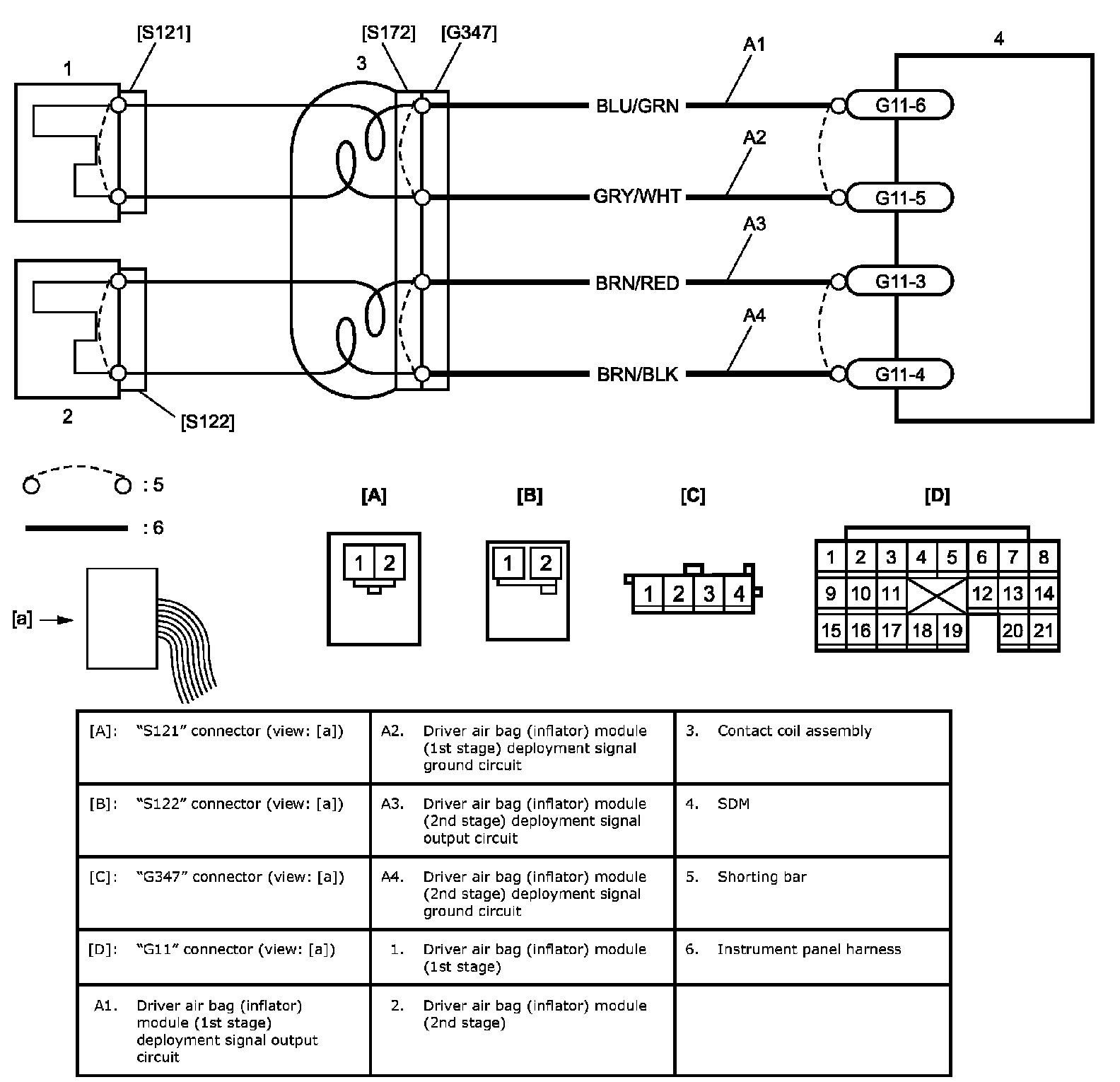

Circuit Diagram:

DTC Troubleshooting

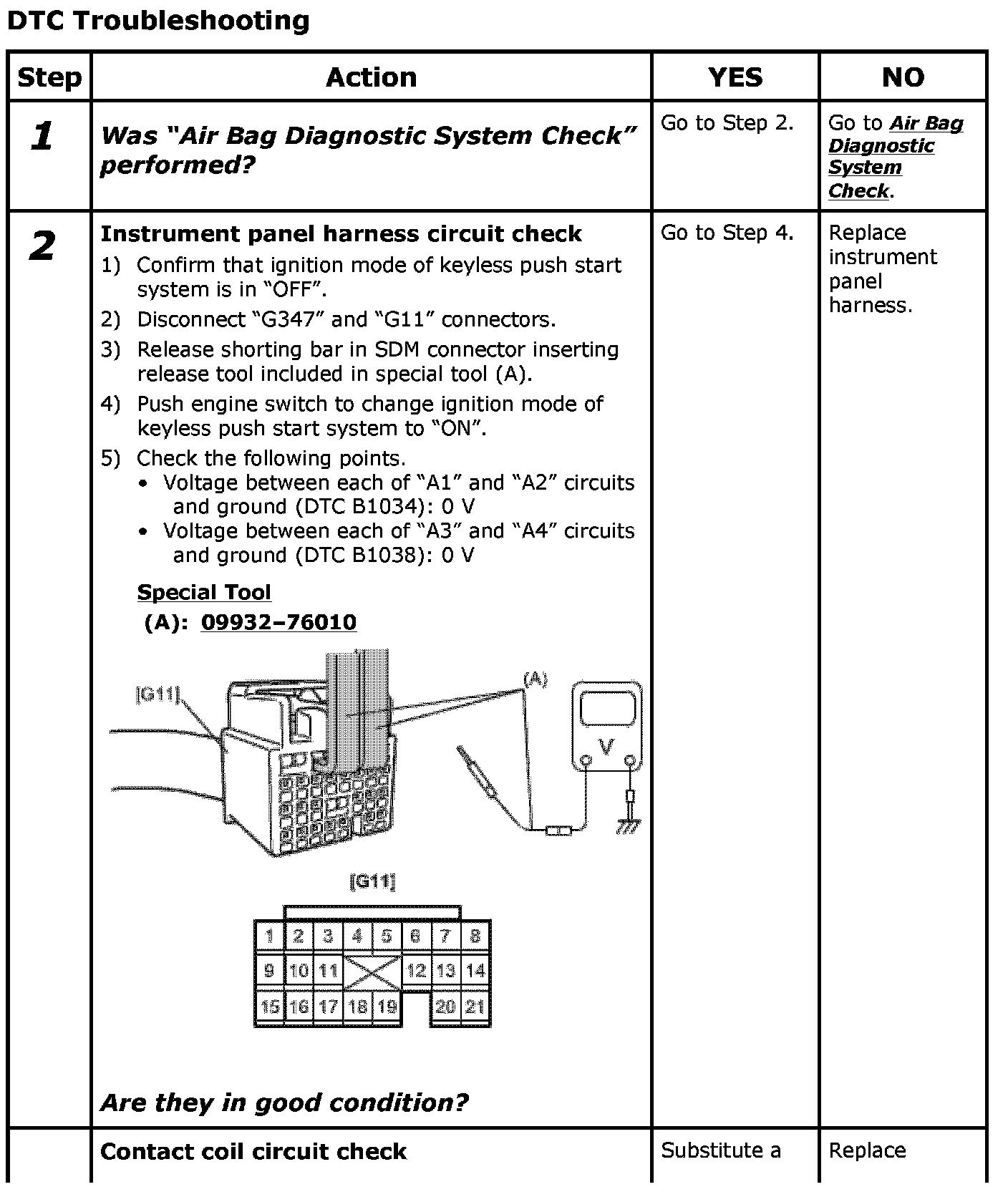

Step 1-3:

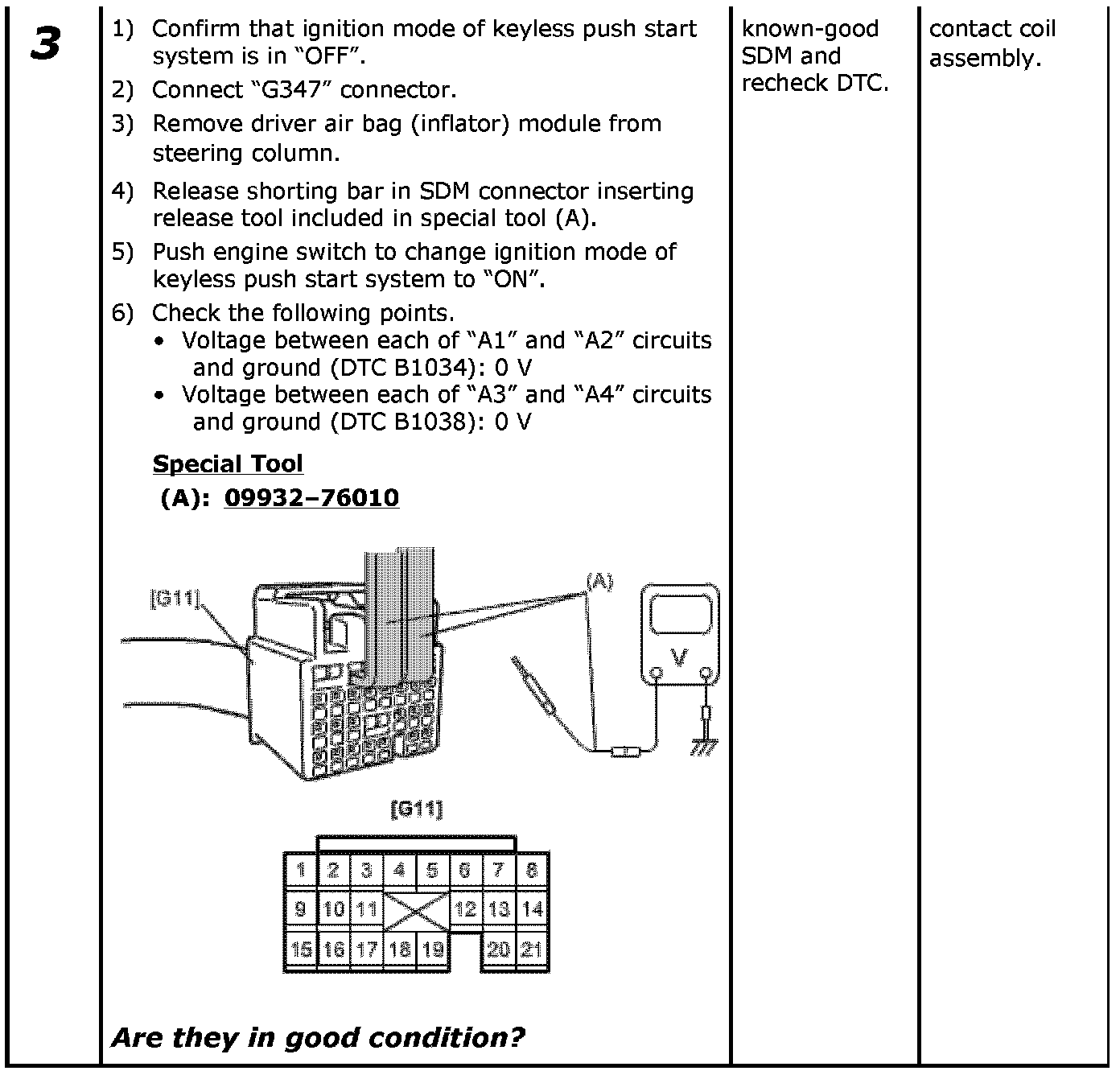

Step 3 (Continued):

NOTE:
Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components and ensure all components are properly mounted.
- Clear DTCs, referring to DTC Clearance DTC Clearance if any DTC is detected.
- Repeat Air Bag Diagnostic System Check Air Bag Diagnostic System Check to confirm that the trouble has been solved.
