Mass Air Flow (MAF) & Intake Air Temperature (IAT) Sensor Removal and Installation: Removal

  1. Disconnect negative cable from battery.
  2. Disconnect MAF & IAT sensor connector (2).
  3. Remove MAF & IAT sensor (1) from air cleaner case (2).

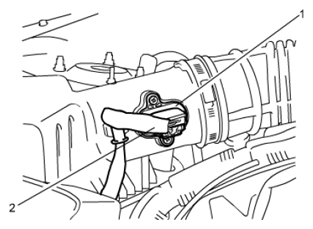

    Fig 1: Identifying MAF & IAT Sensor And Air Cleaner Case
    G06492679Courtesy of SUZUKI OF AMERICA CORP.
