Mass Air Flow (MAF) & Intake Air Temperature (IAT) Sensor Removal and Installation: Installation

Reference: MASS AIR FLOW (MAF) & INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION

Reverse removal procedure noting the following.

• Tighten MAF & IAT sensor screws (1) to specified torque.

  Tightening torque

  MAF & IAT sensor screw (a): 3 N.m (0.3 kg-m, 2.5 lbf-ft)

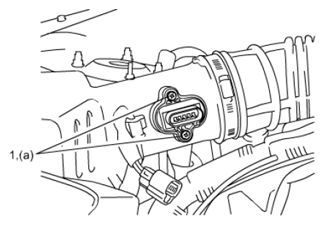

  Fig 1: Identifying MAF & IAT Sensor Screws

  Courtesy of SUZUKI OF AMERICA CORP.
