Knock Sensor Removal and Installation: Installation

Reverse removal procedure noting the following.

• Tighten knock sensor bolt (2) to specified torque.

  Tightening torque

  Knock sensor bolt (a): 23 N.m (2.3 kg-m, 17.0 lbf-ft)

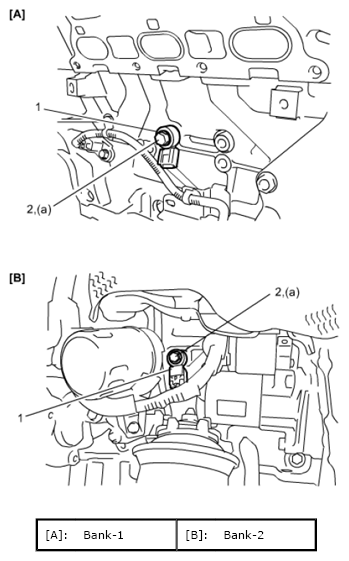

  Fig 1: Identifying Knock Sensor Bolt (Bank-1 And Bank-2)

  Courtesy of SUZUKI OF AMERICA CORP.
