Engine Coolant Temperature (ECT) Sensor Removal and Installation: Removal

  1. Disconnect negative cable from battery.
  2. Drain coolant. See COOLING SYSTEM DRAINING .
  3. Remove engine cover.
  4. Remove oil level gauge and its guide.
  5. Disconnect ECT sensor connector (1).

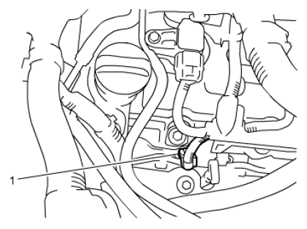

    Fig 1: Identifying ECT Sensor Connector
    G06492655Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove ECT sensor from cylinder head.
