Engine Control Module (ECM) Removal and Installation: Removal
- Disconnect negative cable from battery.

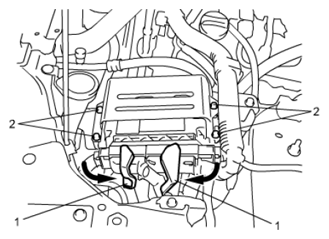

- Turn lock lever (1) to arrow direction until it stops and then disconnect connectors from ECM.
- Remove ECM and cover from bracket by removing their mounting bolts (2).
Courtesy of SUZUKI OF AMERICA CORP.
