Engine Control Module (ECM) Removal and Installation: Installation

Reverse removal procedure noting the following.

• Connect connectors to ECM as follows.
  1. Make sure that lock levers of ECM connector are in unlock positions.
  2. Insert ECM connectors to ECM until it stops.

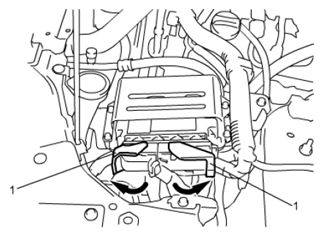

     Fig 1: Identifying ECM Connector

     Courtesy of SUZUKI OF AMERICA CORP.
  3. Lock ECM connectors securely by setting their lock levers in their locked position.

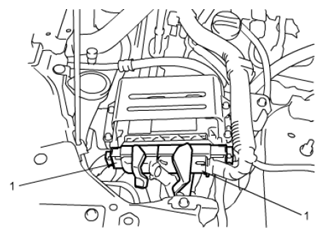

     Fig 2: Locking ECM Connectors

     Courtesy of SUZUKI OF AMERICA CORP.
