Crankshaft Position (CKP) Sensor Removal and Installation: Removal

Disconnect negative cable from battery.
Remove exhaust manifold. See EXHAUST MANIFOLD REMOVAL AND INSTALLATION (N32A) .
Remove bank-1 side engine mounting and bracket. See ENGINE MOUNTINGS COMPONENTS .
Disconnect connector (2) from CKP sensor (1) as follows.
1. Pull out lock lever (3) in arrow direction.
2. Disconnect connector from CKP sensor while pushing lock button (4).

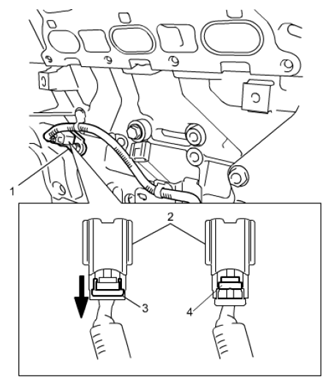

  Fig 1: Pulling Lock Lever
  Courtesy of SUZUKI OF AMERICA CORP.
Remove CKP sensor (1) from cylinder block.
