Crankshaft Position (CKP) Sensor Removal and Installation: Installation

Reverse removal procedure noting the following.

• Apply engine oil to O-ring of sensor.
• Tighten CKP sensor bolt to specified torque.

  Tightening torque

  CKP sensor bolt: 10 N.m (1.0 kg-m, 7.5 lbf-ft)

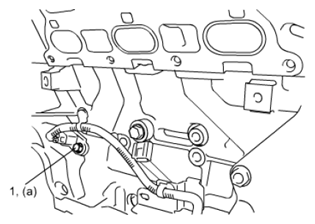

  Fig 1: Identifying CKP Sensor Bolt

  Courtesy of SUZUKI OF AMERICA CORP.
  • Connect connector and fix wire harness with clamp securely.
