Camshaft Position (CMP) Sensor Removal and Installation: Installation

Reverse removal procedure noting the following.

Apply engine oil to O-ring of sensor.
Tighten new CMP sensor bolt (3) to specified torque.
Tightening torque

CMP sensor bolt (a): 10 N.m (1.0 kg-m, 7.5 lbf-ft)

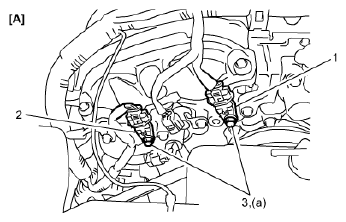

[A]: Bank-1

Fig 1: Identifying CMP Sensor (Bank-1)
Courtesy of SUZUKI OF AMERICA CORP.

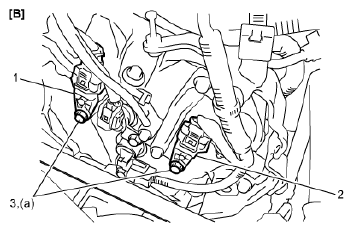

[B]: Bank-2

Fig 2: Identifying CMP Sensor (Bank-2)
Courtesy of SUZUKI OF AMERICA CORP.

[A]: Bank-1

[B]: Bank-2

1. CMP sensor (sensor 1)

2. CMP sensor (sensor 2)
