Engine Control System Circuit Diagram: Notes
NOTE:
For identification of each cylinder and bank, refer to
PRECAUTION FOR IDENTIFICATION OF CYLINDER AND BANK
.

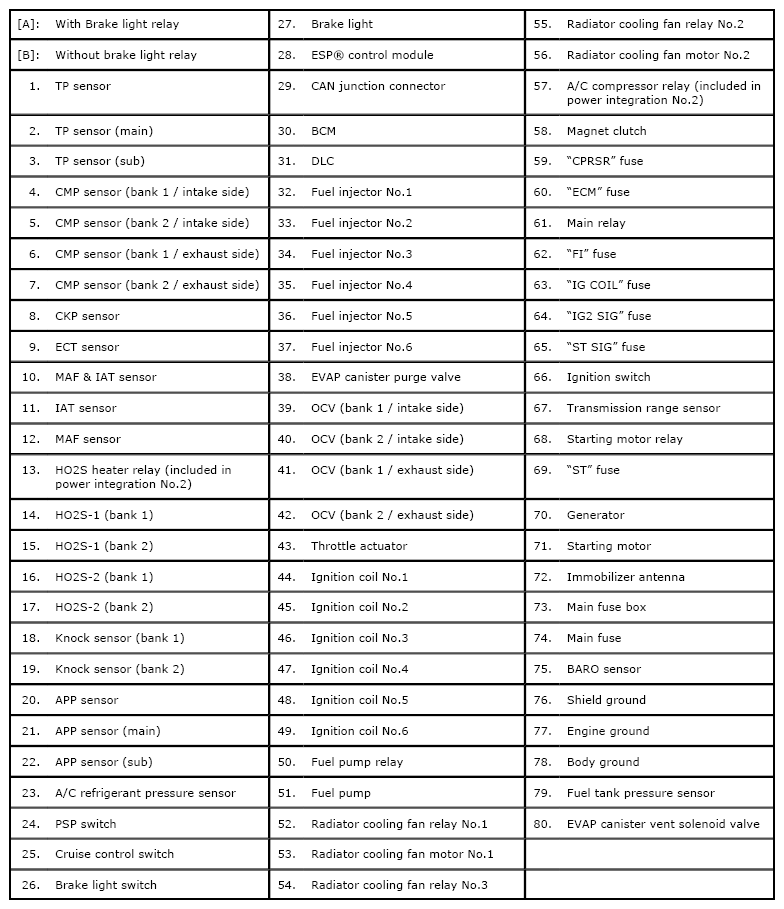

Fig 1: Engine Control System Circuit Diagram (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

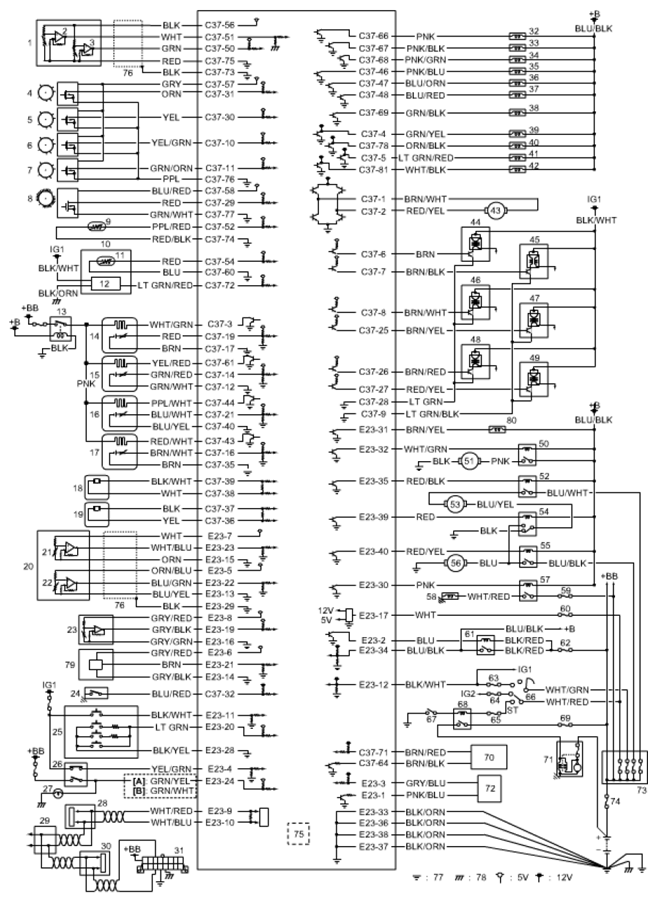

Fig 2: Engine Control System Circuit Diagram (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
