Manual Transmission Adapter Case Disassembly and Assembly: Disassembly

Remove oil seal (1) from adapter case using special tool.

Special Tool

(A): 09913-50121

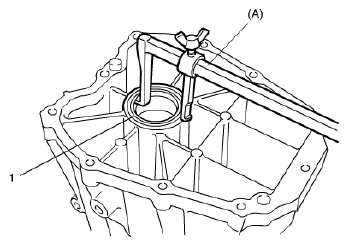

Fig 1: Removing Oil Seal

Courtesy of SUZUKI OF AMERICA CORP.
