Valve Body Assembly Components

WARNING: This page is about a different variant/trim than selected.

CAUTION: When replacing pressure control solenoid valve-A, -B, -C and TCC pressure control solenoid valve, it is strictly required to replace it together with valve body assembly as a set.

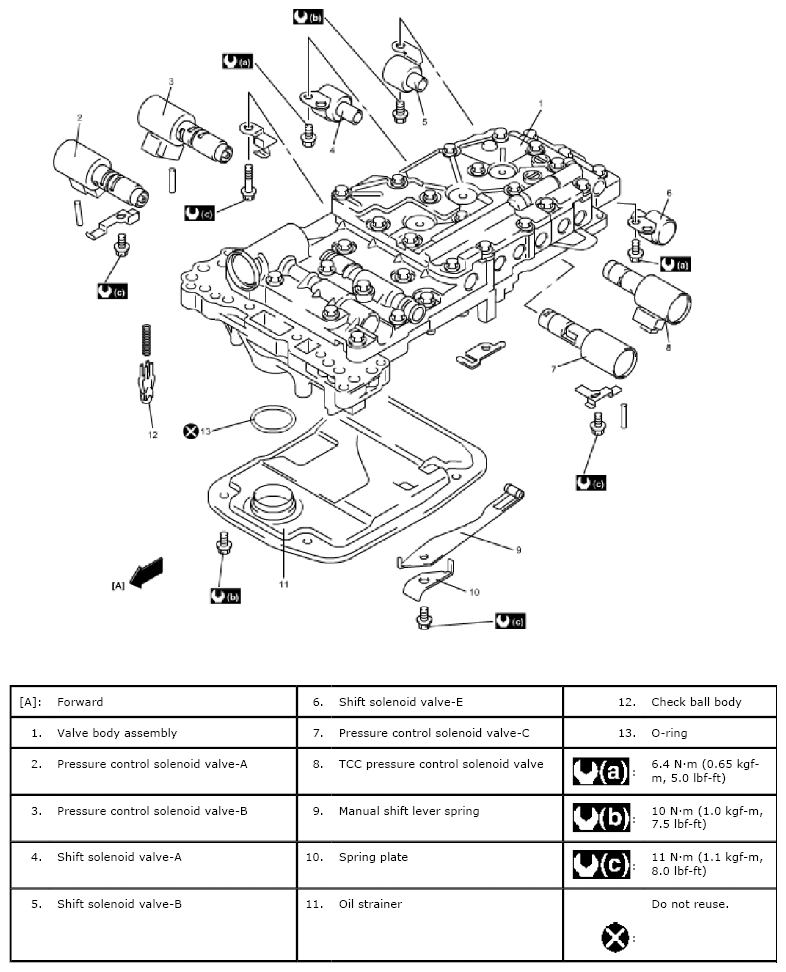

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.
