Oil Pump Disassembly and Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove oil pump oil seal (1) by using special tool.
    CAUTION: Be careful not to damage bushing and oil pump body.

    Special Tool

    (A): 09913-50121

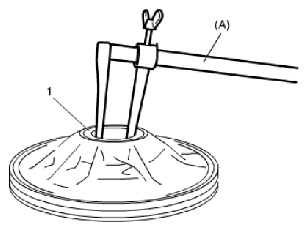

    Fig 1: Removing Oil Pump Oil Seal
    G06500200Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove 3 clutch drum oil seal rings (1).
    Fig 2: Identifying Clutch Drum Oil Seal Rings
    G06500201Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove stator shaft assembly (1) from oil pump body by removing 14 bolts.
    4. Fig 3: Identifying Stator Shaft Assembly
    G06500202Courtesy of SUZUKI OF AMERICA CORP.
  4. Give marks (1) on drive gear (2) and driven gear (3) by using water-proof paint.
  5. Remove drive gear (2) and driven gear (3) from oil pump body.
    Fig 4: Identifying Drive Gear And Driven Gear Marks
    G06500203Courtesy of SUZUKI OF AMERICA CORP.
