Key Interlock Cable Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Lay interlock cable to its original cabling route.
Turn ignition switch to "ACC" position.
Insert cable casing cap (1) into key cylinder cover (2) securely.

Fig 1: Identifying Cable Casing Cap And Key Cylinder Cover
Courtesy of SUZUKI OF AMERICA CORP.

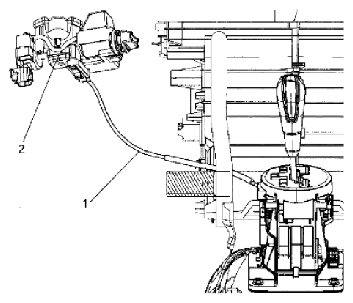

Pass and connect interlock cable (1) as shown in figure.

Fig 2: Identifying Interlock Cable And Key Cylinder
Courtesy of SUZUKI OF AMERICA CORP.
Pull out lock button (1) of selector side cable end (2).

Fig 3: Pulling Out Lock Button Of Selector Side Cable End
Courtesy of SUZUKI OF AMERICA CORP.
Shift selector lever to "N" position.
Install cable casing cap (3) or selector bracket (4).
Connect cable end (1) to interlock cam (2) with ignition switch turned to "ACC" position.
Drive lock button (5) in cable end until it locks cable expansion and contraction.

Fig 4: Installing Cable Casing Cap

Courtesy of SUZUKI OF AMERICA CORP.

Install steering column cover.
Connect negative cable at battery and enable air bag system, referring to ENABLING AIR BAG SYSTEM: ADVANCED AIR BAG or ENABLING AIR BAG SYSTEM: EXCEPT ADVANCED AIR BAG .
