Automatic Transmission Assembly Components
WARNING:
This page is about a different variant/trim than selected.

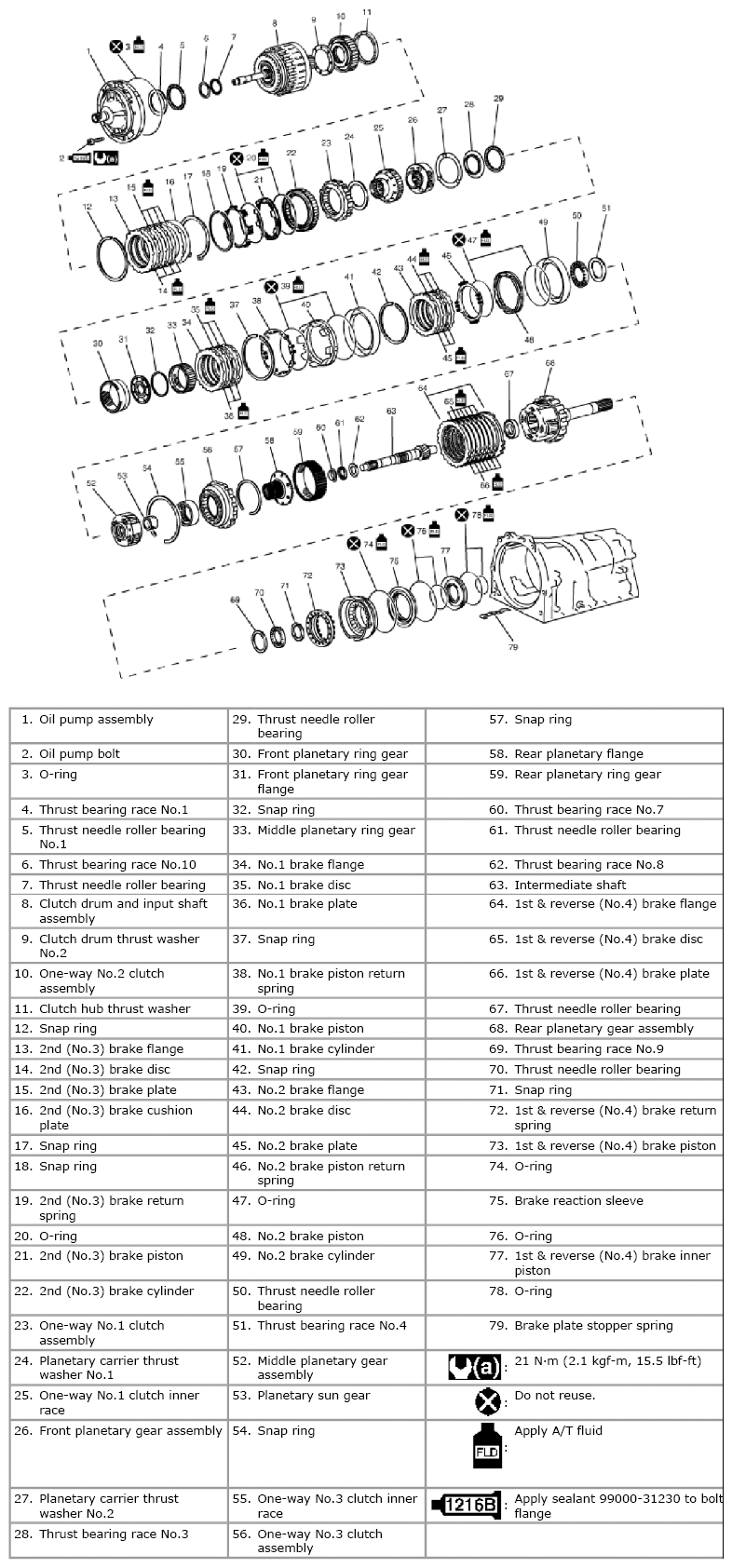

Fig 1: Automatic Transmission Assembly Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
