Reference Waveform No. 4
WARNING: This page is about a different variant/trim than selected.

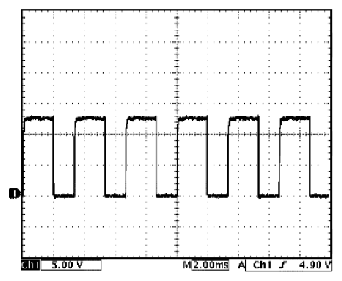

Pressure control solenoid valve-C signal at engine idling
WAVEFORM REFERENCE
| Measurement terminal |
CH1: E92-21 to E92-1 |
| Oscilloscope setting |
CH1: 5 V/DIV
TIME: 2 ms/DIV |
| Measurement condition |
- After warmed up to normal operating temperature
- Engine at specified idle speed with "P" range
|
Courtesy of SUZUKI OF AMERICA CORP.
