Reference Waveform No. 3
WARNING: This page is about a different variant/trim than selected.

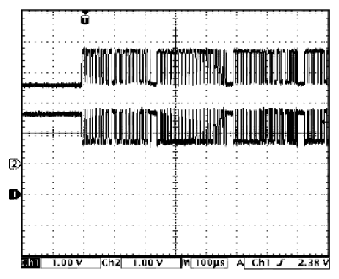

CAN communication line signal at engine idling
WAVEFORM REFERENCE
| Measurement terminal | CH1: E92-17 to E92-1 CH2: E92-7 to E92-1 |
| Oscilloscope setting | CH1: 1 V/DIV, CH2: 1 V/DIV TIME: 100 μs/DIV |
| Measurement condition |
|
