Fuel Tank Inlet Valve Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Install fuel tank inlet valves (1) to fuel filler neck (3) and fuel tank (2).

Fig 1: Identifying Fuel Tank Inlet Valves And Fuel Filler Neck
Courtesy of SUZUKI OF AMERICA CORP.
Install fuel filler hose (1) to fuel filler neck as shown in figure, and tighten fuel filler hose clamp to specified torque. For proper installation, refer to FUEL HOSE DISCONNECTING AND RECONNECTING .
Tightening torque

Fuel filler hose clamp (a): 1.5 N.m (0.15 kg-m, 1.5 lbf-ft)

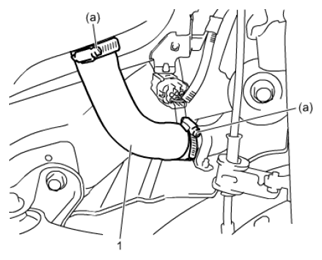

Fig 2: Identifying Fuel Filler Hose
Courtesy of SUZUKI OF AMERICA CORP.
Lower vehicle and install fuel filler cap.
