Grand Vitara Base, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Ignition Switch/Steering Lock
>>
Instrumentation/Driver Info./Horn
>>
Schematic and Routing Diagram
>>
Combination Meter Circuit Diagram
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Combination Meter Circuit Diagram: Notes

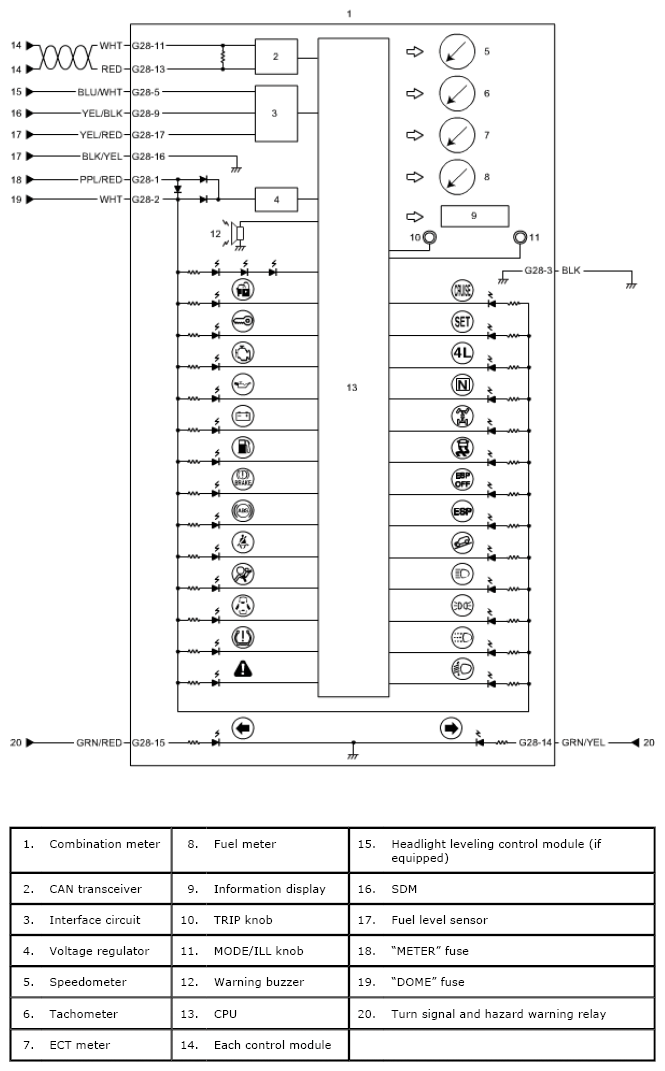

Fig 1: Combination Meter Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
