Instrument Panel Removal and Installation: Removal

Disconnect negative cable at battery.
Remove driver side instrument panel under cover (1) and passenger side instrument panel under cover (2).

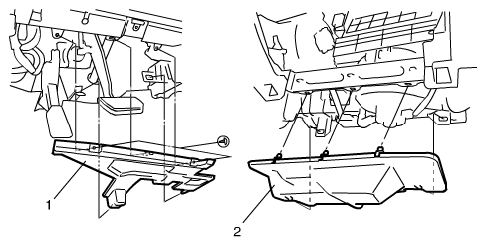

Fig 1: Identifying Driver Side Instrument Panel Under Cover And Passenger Side Instrument Panel Under Cover
Courtesy of SUZUKI OF AMERICA CORP.
Disable air bag system referring to DISABLING AIR BAG SYSTEM: ADVANCED AIR BAG or DISABLING AIR BAG SYSTEM: EXCEPT ADVANCED AIR BAG .
Remove steering column hole cover (1).
Turn steering wheel to remove steering column cover screws (3).
Remove steering column covers (2).

Fig 2: Identifying Steering Column Covers
Courtesy of SUZUKI OF AMERICA CORP.
Remove glove box (1).
Remove hood latch release lever (2).

Fig 3: Identifying Hood Latch Release Lever And Glove Box
Courtesy of SUZUKI OF AMERICA CORP.
Remove console box referring to Console Box Components .
Remove front pillar trims (1), front side sill scuffs (2) and dash side trims (3).

Fig 4: Identifying Front Pillar Trims, Front Side Sill Scuffs And Dash Side Trims
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect instrument panel harness connectors, inside air temperature sensor duct and antenna cable instrument panel removal.
Remove steering column mounting nuts referring to Steering Column Assembly Removal and Installation .
Remove instrument panel ground wire.
Remove instrument panel mounting bolts (1).
Remove instrument panel (2) with steering support member and instrument panel harness.

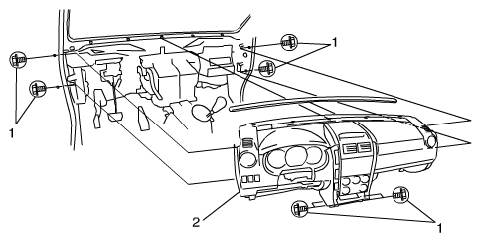

Fig 5: Identifying Instrument Panel Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
