Instrument Panel Removal and Installation: Installation

Reverse removal procedure noting the following.

• When installing each part, be careful not to catch any cable or wiring harness.
• Tighten instrument panel mounting bolts to specified torque

  Tightening torque

  Instrument panel mounting bolt (a): 23 N.m (2.3 kg-m, 17.0 lbf-ft)

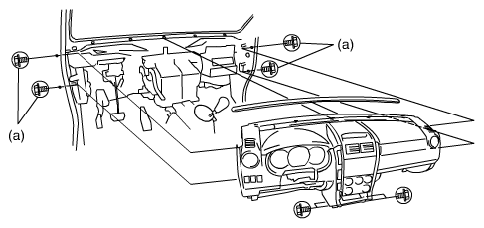

  Fig 1: Identifying Panel Mounting Bolts

  Courtesy of SUZUKI OF AMERICA CORP.
• Tighten steering column mounting nuts referring to Steering Column Assembly Removal and Installation  .
• Enable air bag system referring to ENABLING AIR BAG SYSTEM: ADVANCED AIR BAG or ENABLING AIR BAG SYSTEM: EXCEPT ADVANCED AIR BAG .
