Ignition Switch Removal and Installation: Removal

Disconnect negative cable at battery.
Confirm that ignition key is removed.
Remove steering column hole cover (1).
Turn steering wheel to remove steering column cover screws (3) and then remove steering column covers (2).

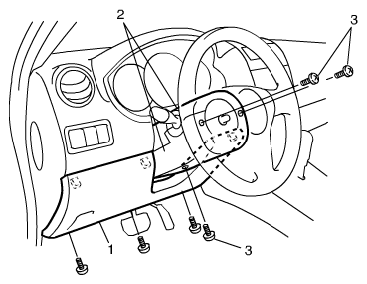

Fig 1: Identifying Steering Column Covers And Steering Column Hole Cover
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect couplers (1) from ignition switch (2).
Remove ignition switch (2) from key cylinder (3).

Fig 2: Identifying Couplers, Ignition Switch And Key Cylinder
Courtesy of SUZUKI OF AMERICA CORP.
