Electronic Shift Control Input/Output Diagram

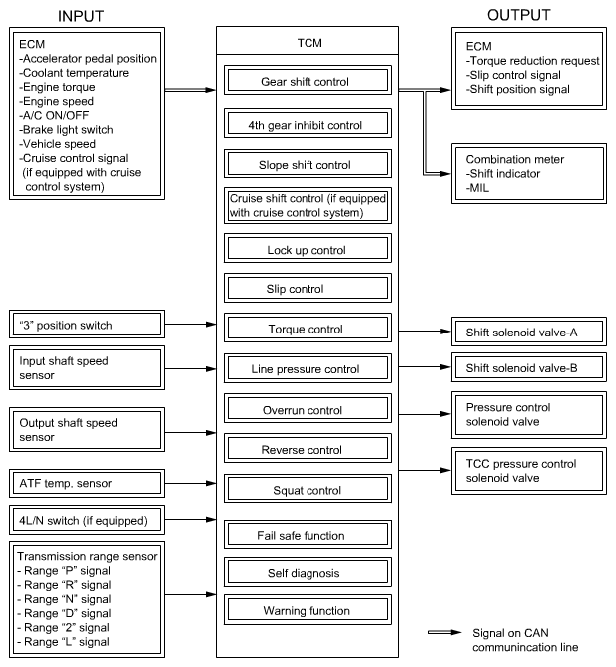

Fig 1: Electronic Shift Control Input/Output Diagram
G06498540Courtesy of SUZUKI OF AMERICA CORP.
