Valve Body Assembly Components

CAUTION: When replacing pressure control solenoid valve and/or TCC pressure control solenoid valve, it is strictly required to replace it together with valve body assembly as a set. Replacing pressure control solenoid valve and/or TCC pressure control solenoid valve independently may cause excessive shift shock.

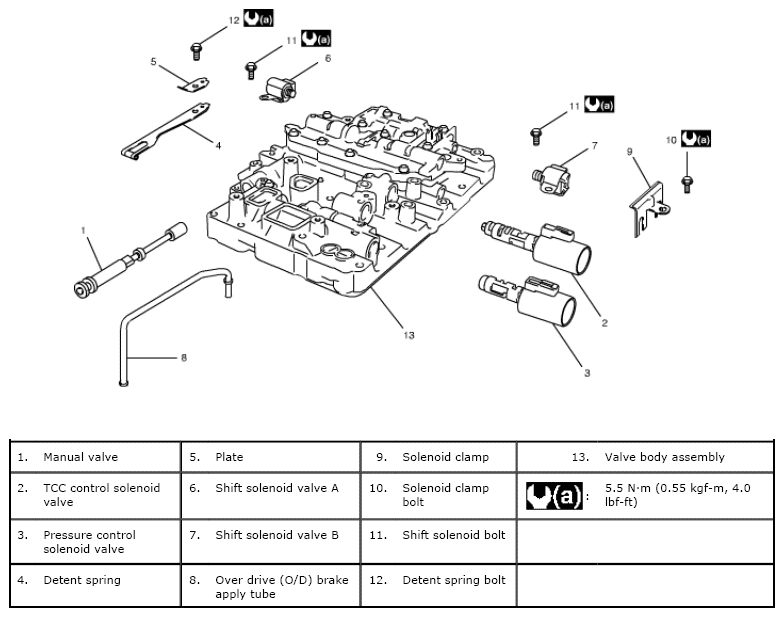

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications
G06498744Courtesy of SUZUKI OF AMERICA CORP.
