Planetary Gears and Output Shaft Components

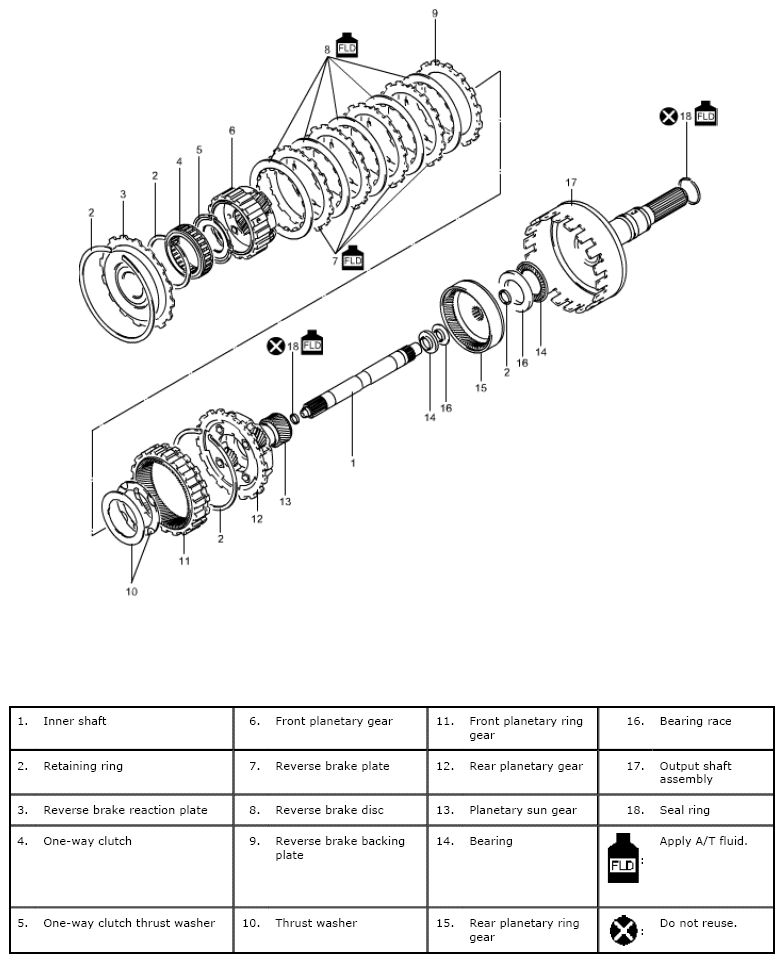

Fig 1: Identifying Planetary Gears And Output Shaft Components
G06498731Courtesy of SUZUKI OF AMERICA CORP.
