Oil Cooler Hose and Pipe Components

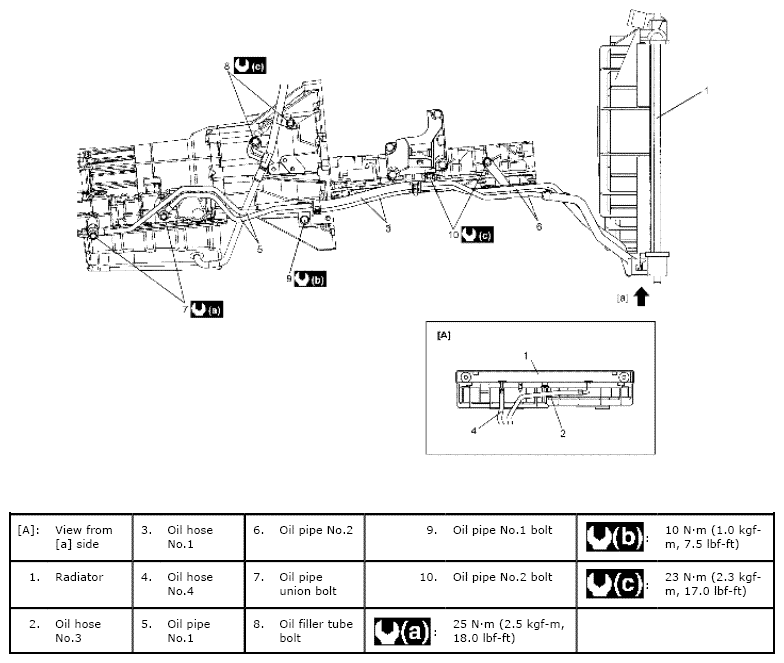

Fig 1: Oil Cooler Hose And Pipe Replacement Components With Torque Specifications
G06498600Courtesy of SUZUKI OF AMERICA CORP.
