Forward Clutch Components

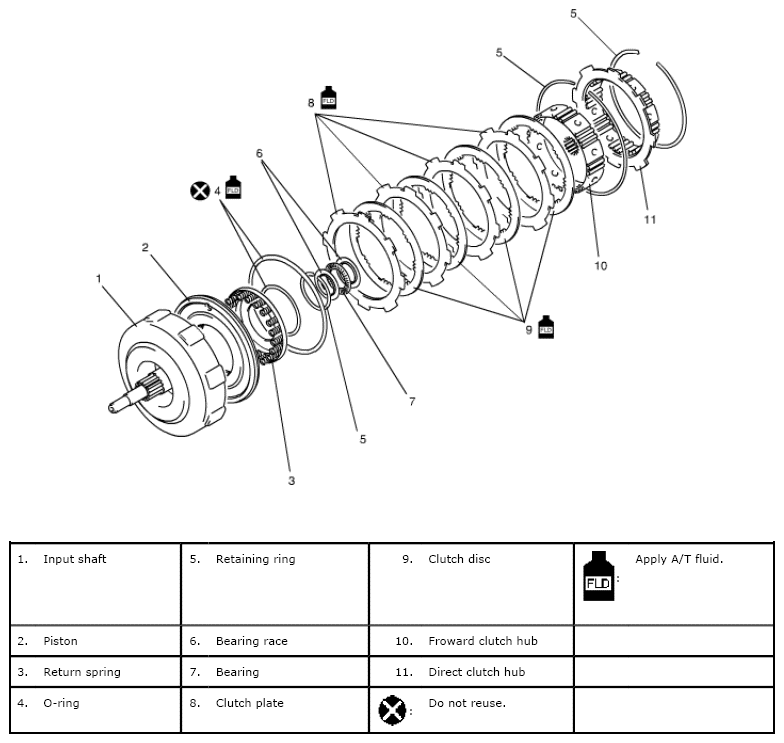

Fig 1: Identifying Forward Clutch Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
