Audio System Component Location

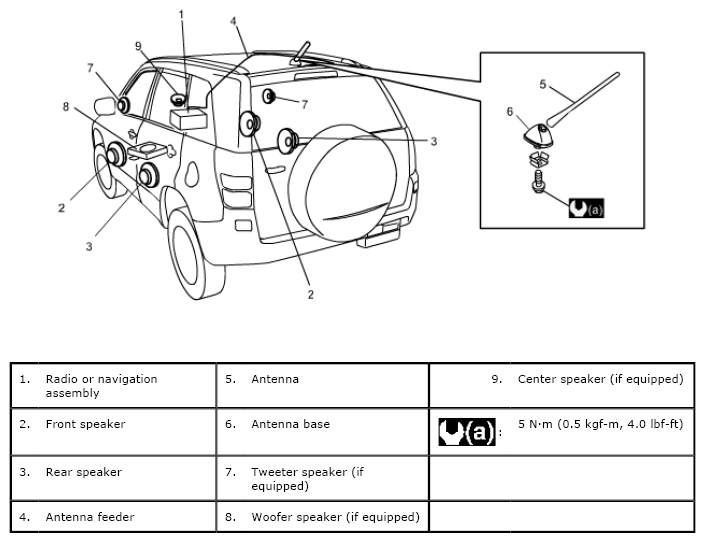

Fig 1: Audio System Component Location With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
