Compressor Clutch

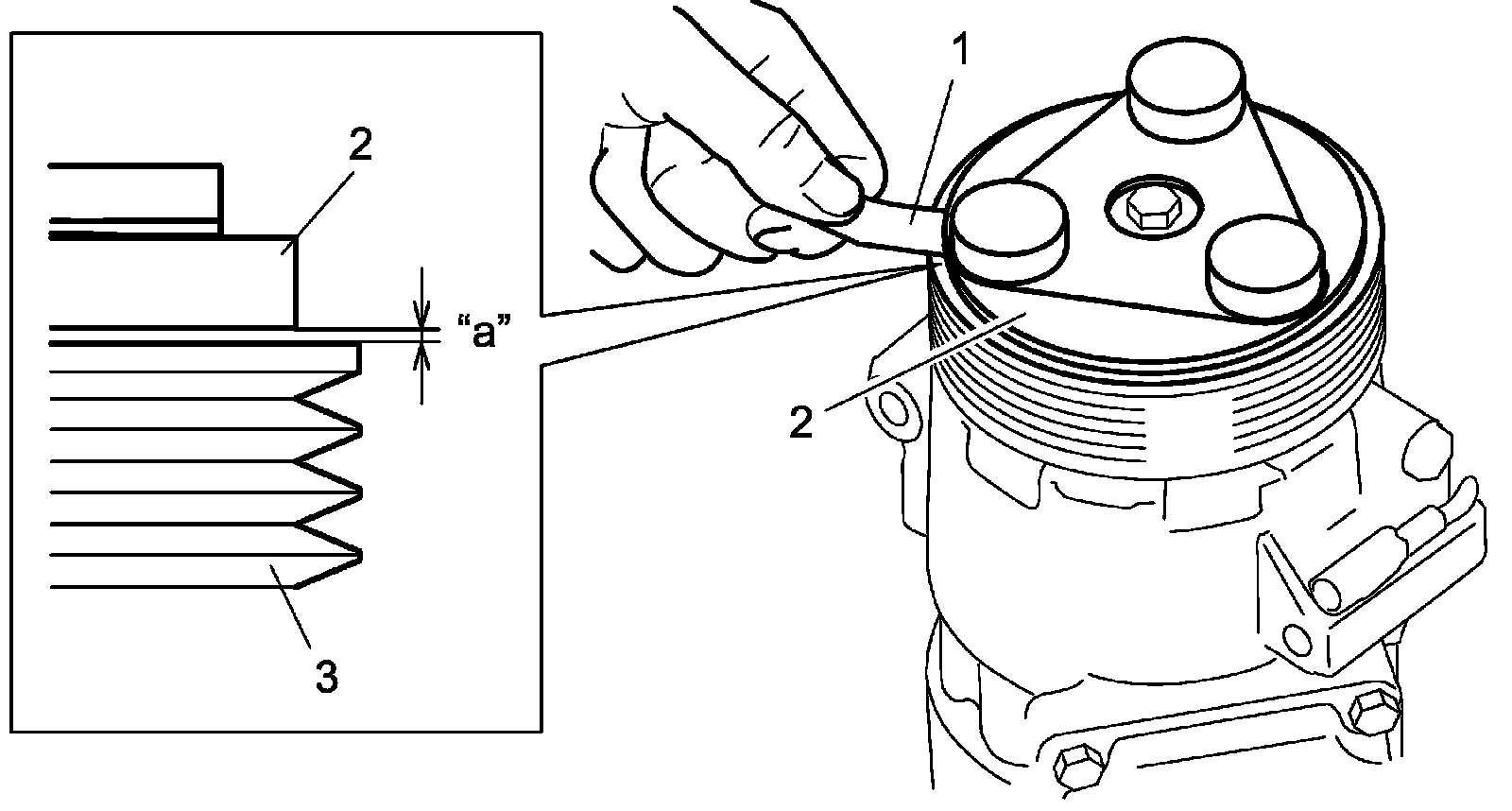

Standard clearance between armature plate and magnet clutch
"a" : 0.3 - 0.6 mm (0.012 - 0.024 in.)
