CAN Communication System Transmitting and Receiving Data Table

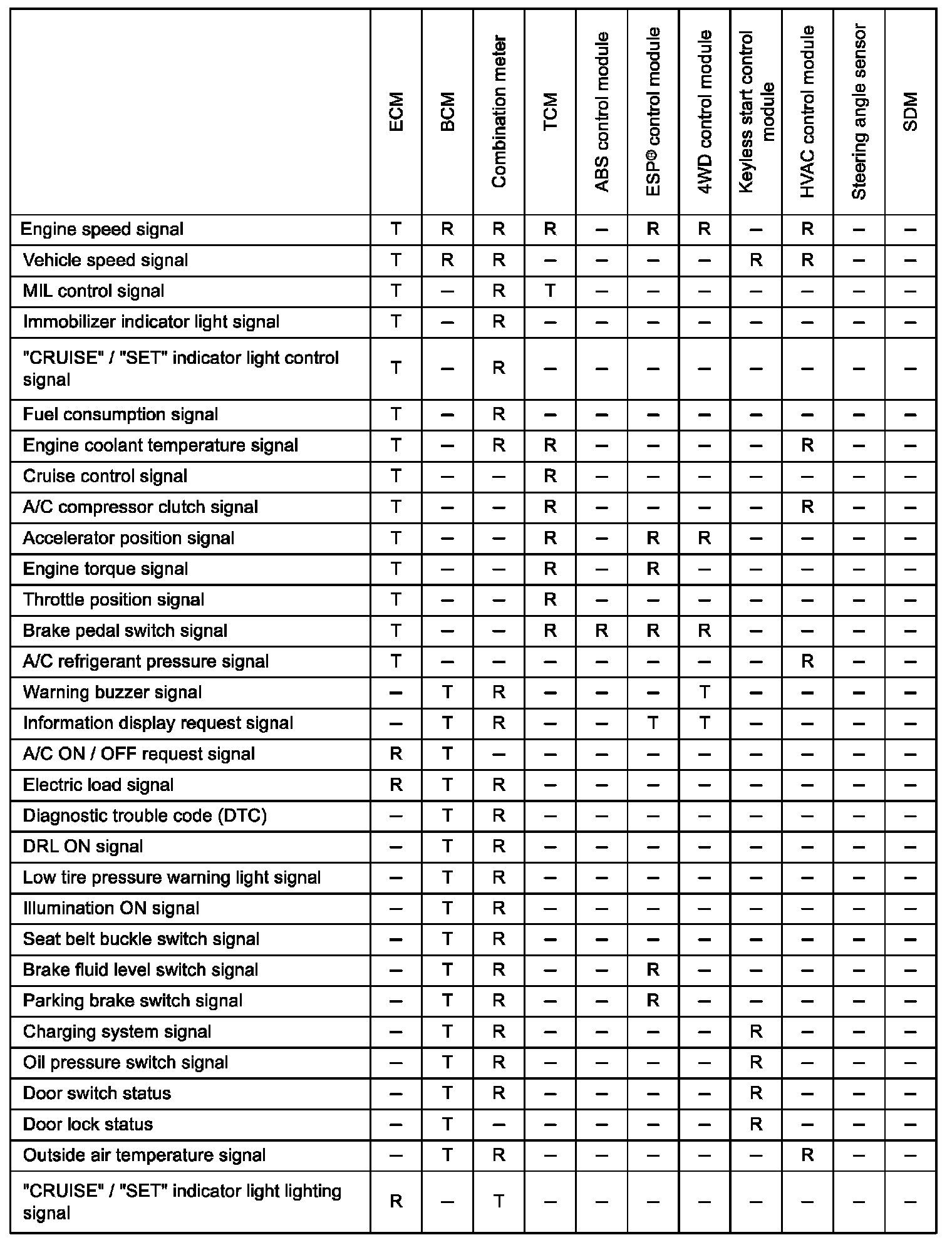

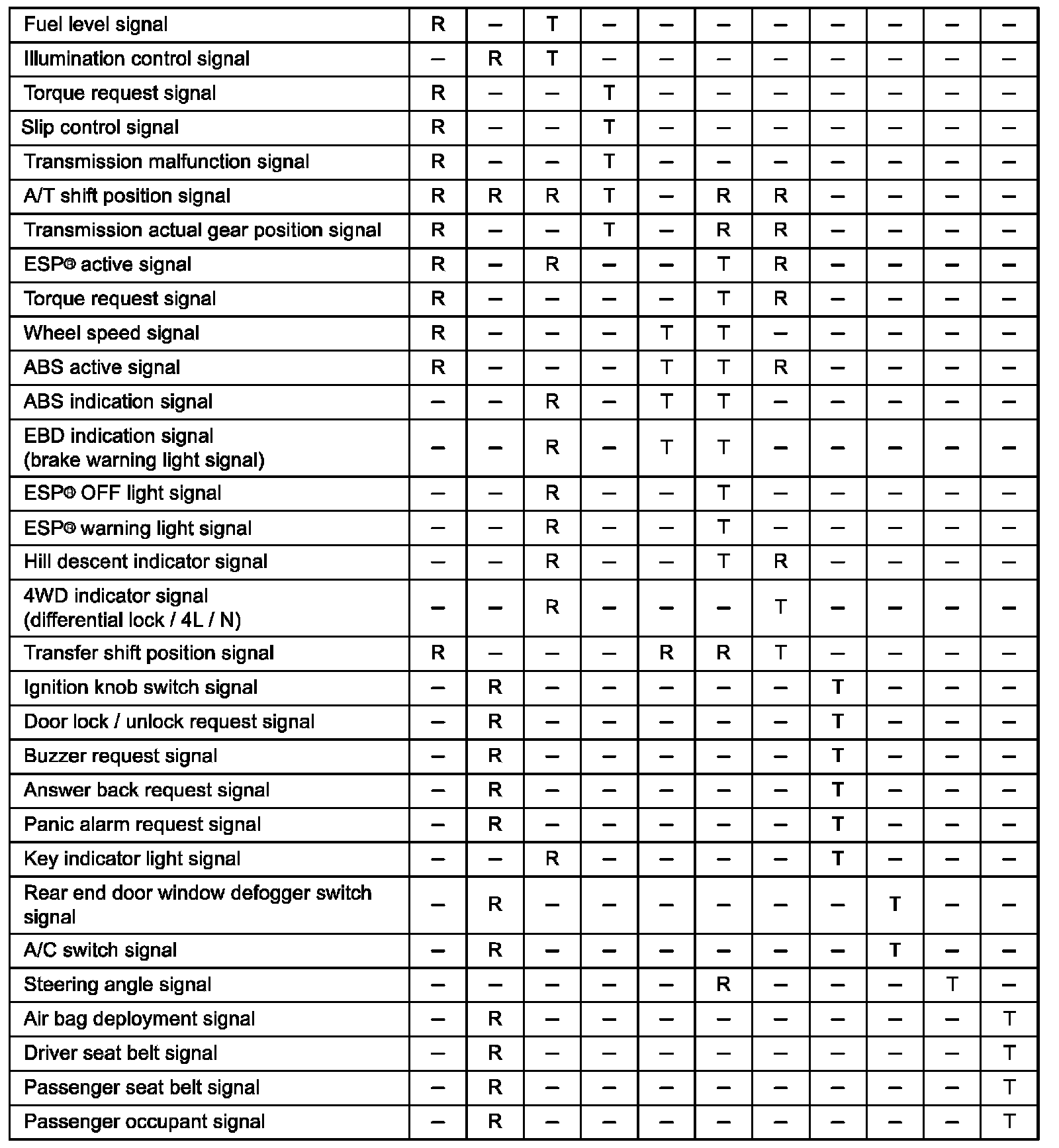

CAN Communication System Transmitting and Receiving Data Table










NOTE:
T: Transmit
R: Receive
