Engine - Revised Connecting Rod Parts/Inspection

GRAND VITARA

Division: Automotive
Category: Technical

Section Title: Engine
TSB No. TS 29 08130

SUBJECT:
SERVICE MANUAL UPDATE: CHANGES MADE TO CONNECTING ROD RELATED PARTS AND INSPECTION PROCEDURES.

MODEL(S):
GRAND VITARA (JB632)

YEAR:
2010

CONDITION:
When referencing the service manual for inspection and repair procedures for the part(s) listed above it may not contain this updated information.

CAUSE:
Updates were made to parts related to the connecting rods.














CORRECTION:

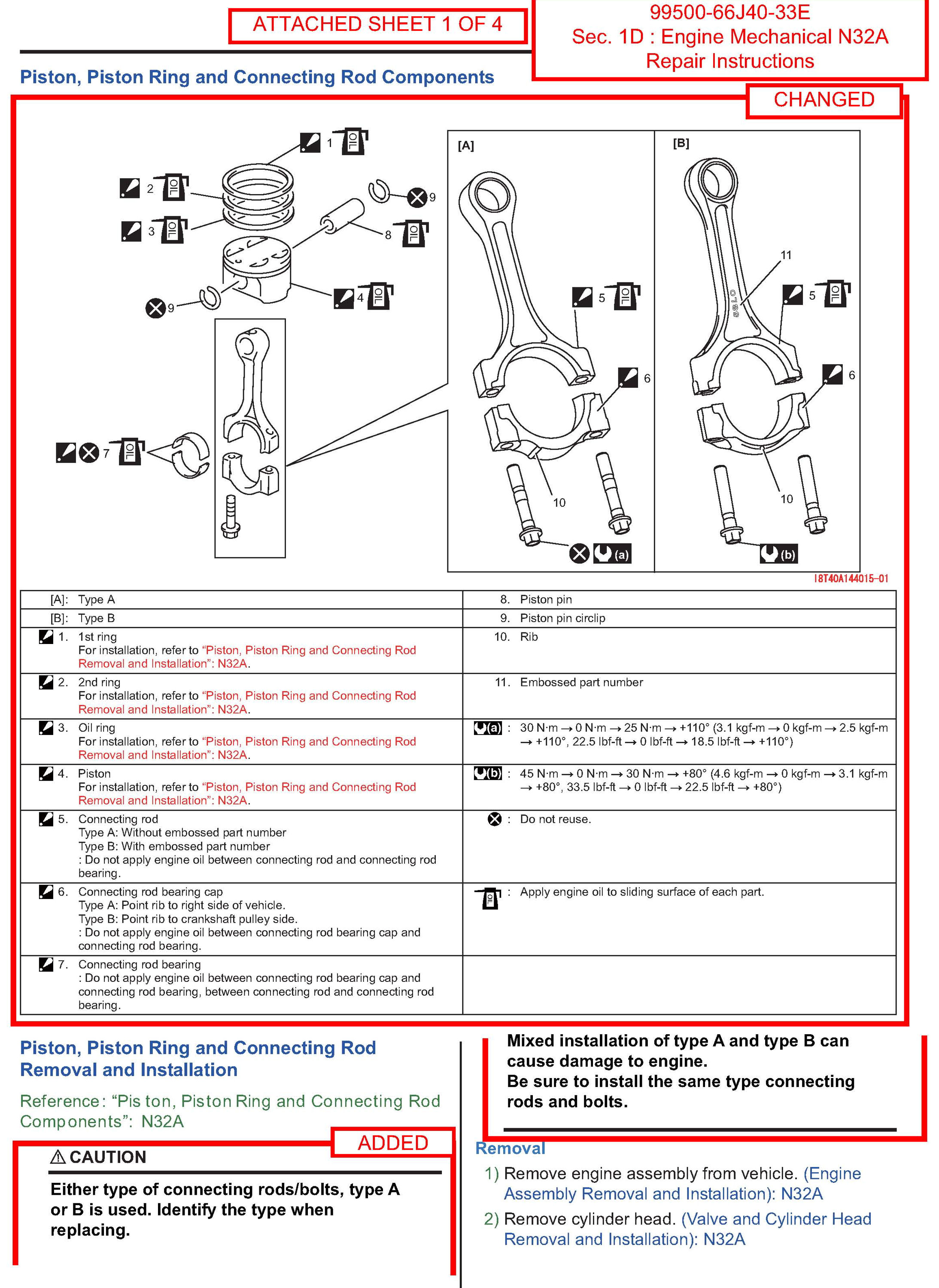

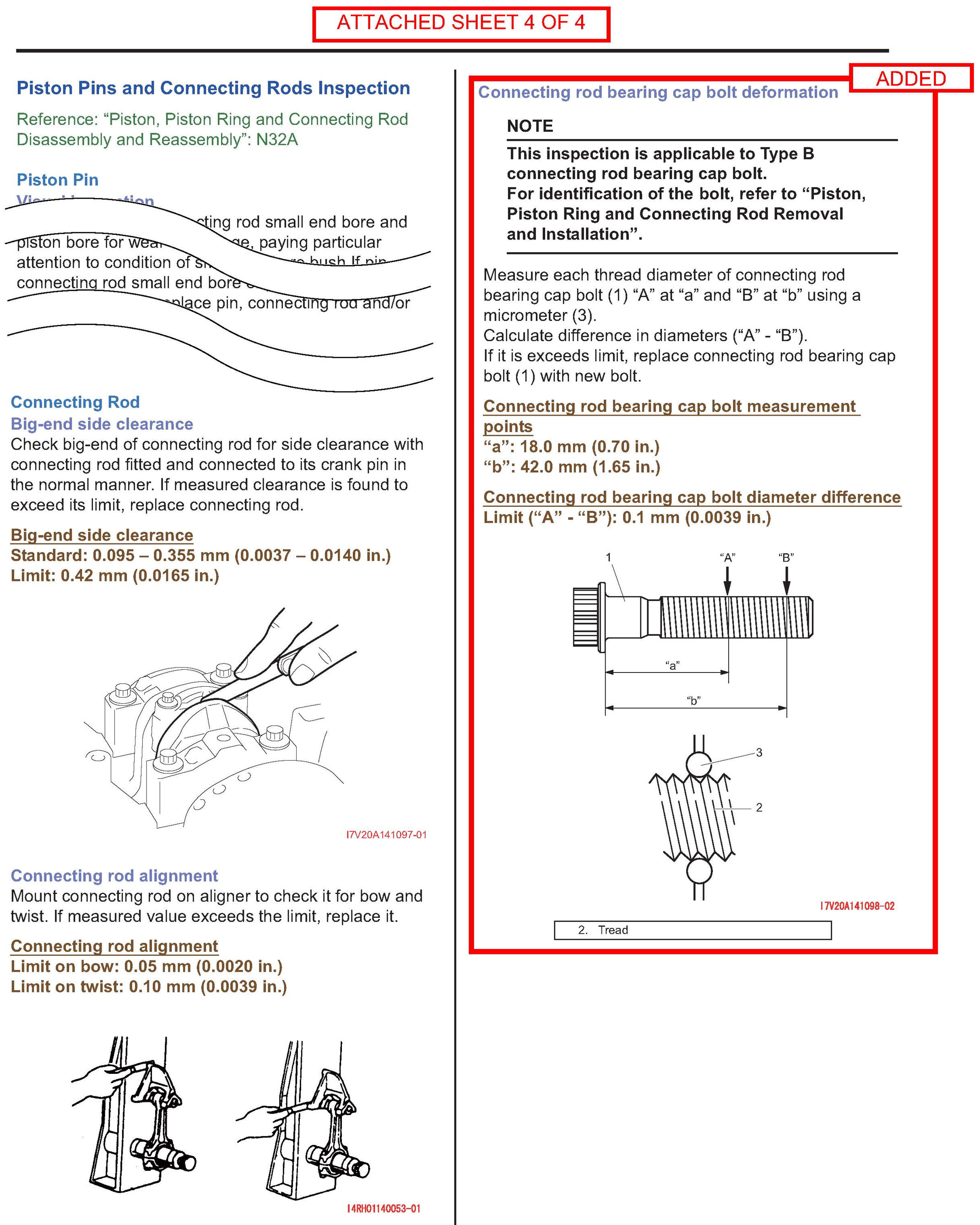

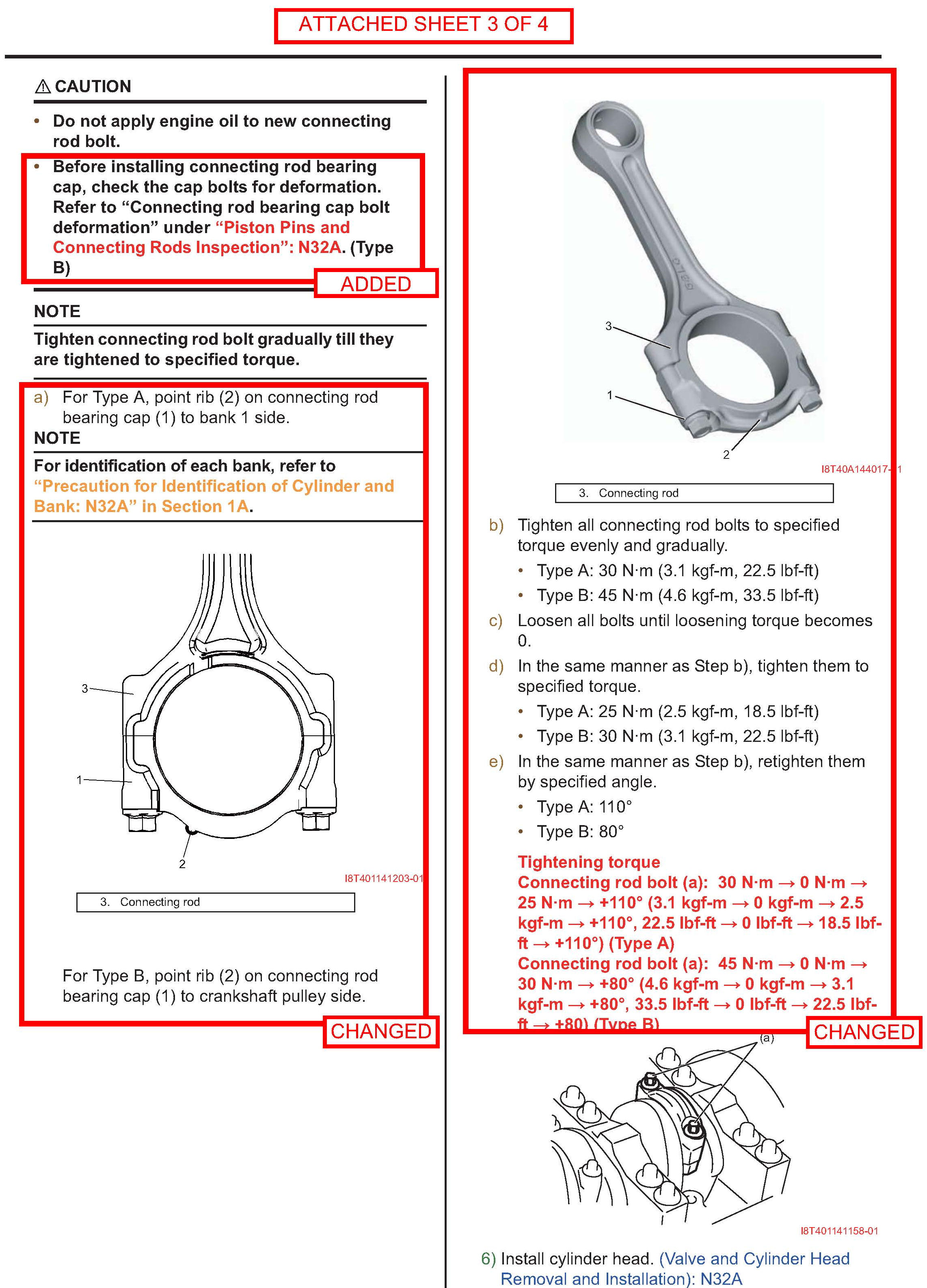

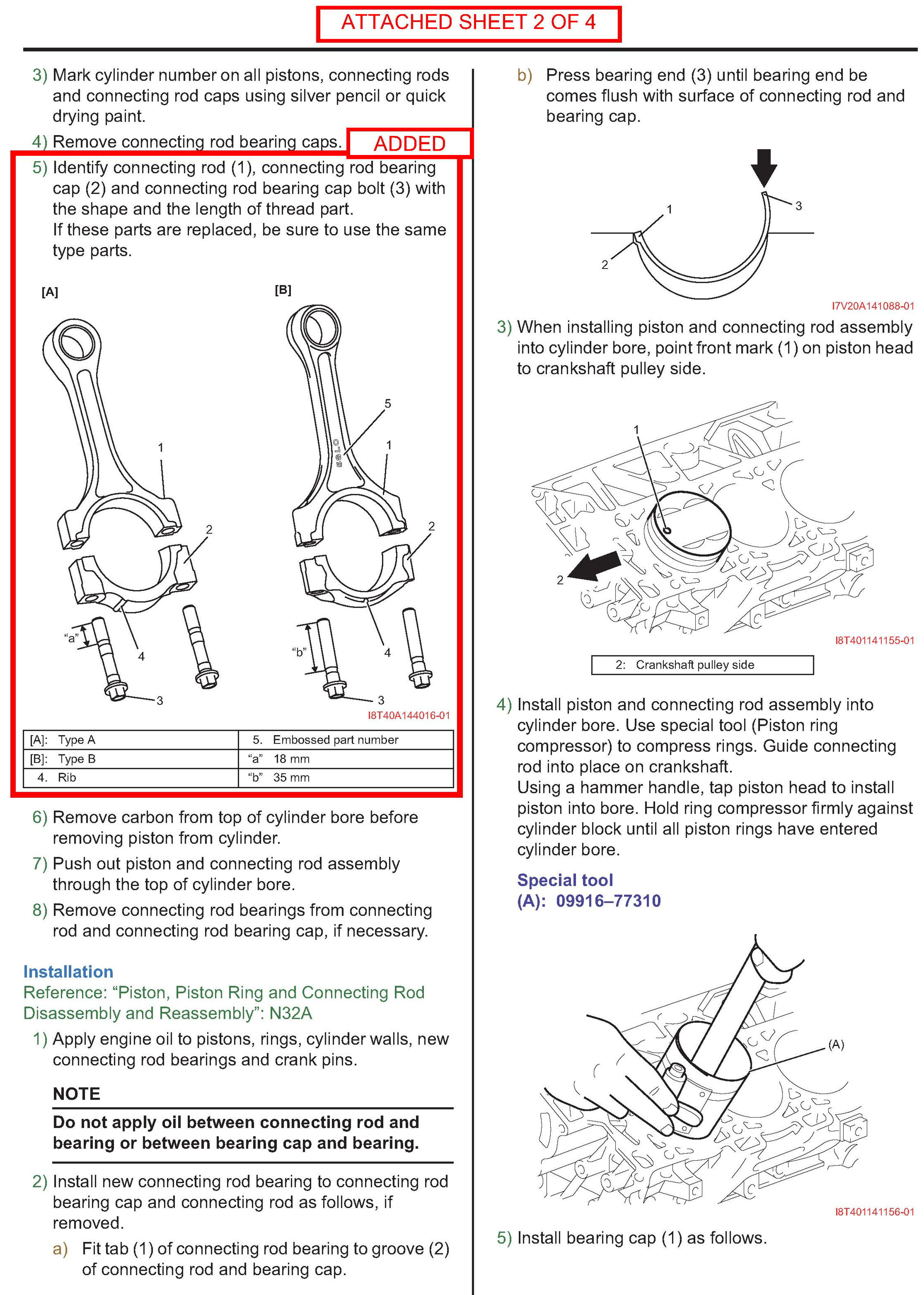

Please review the descriptions below for the parts that were changed, and refer to the service manual pages that reflect the updates.

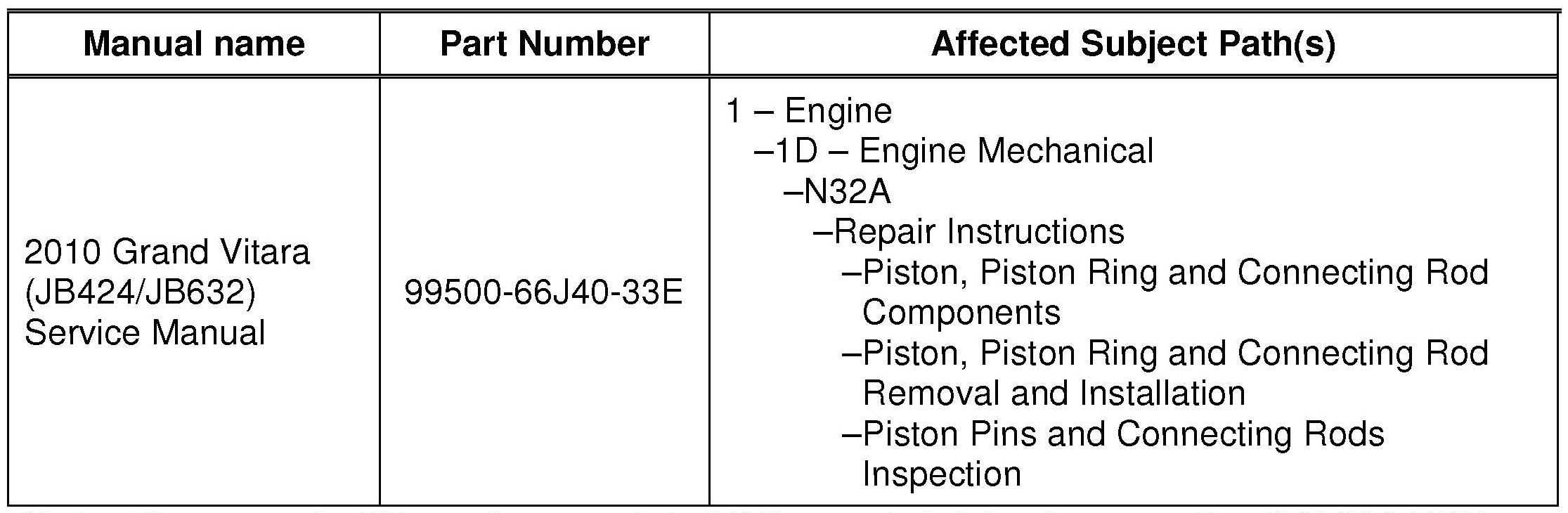

AFFECTED SERVICE MANUAL(S):

Note:
The manual will have been updated if the reprint date shown on the CD/DVD-ROM label is later than the issue date of this bulletin.

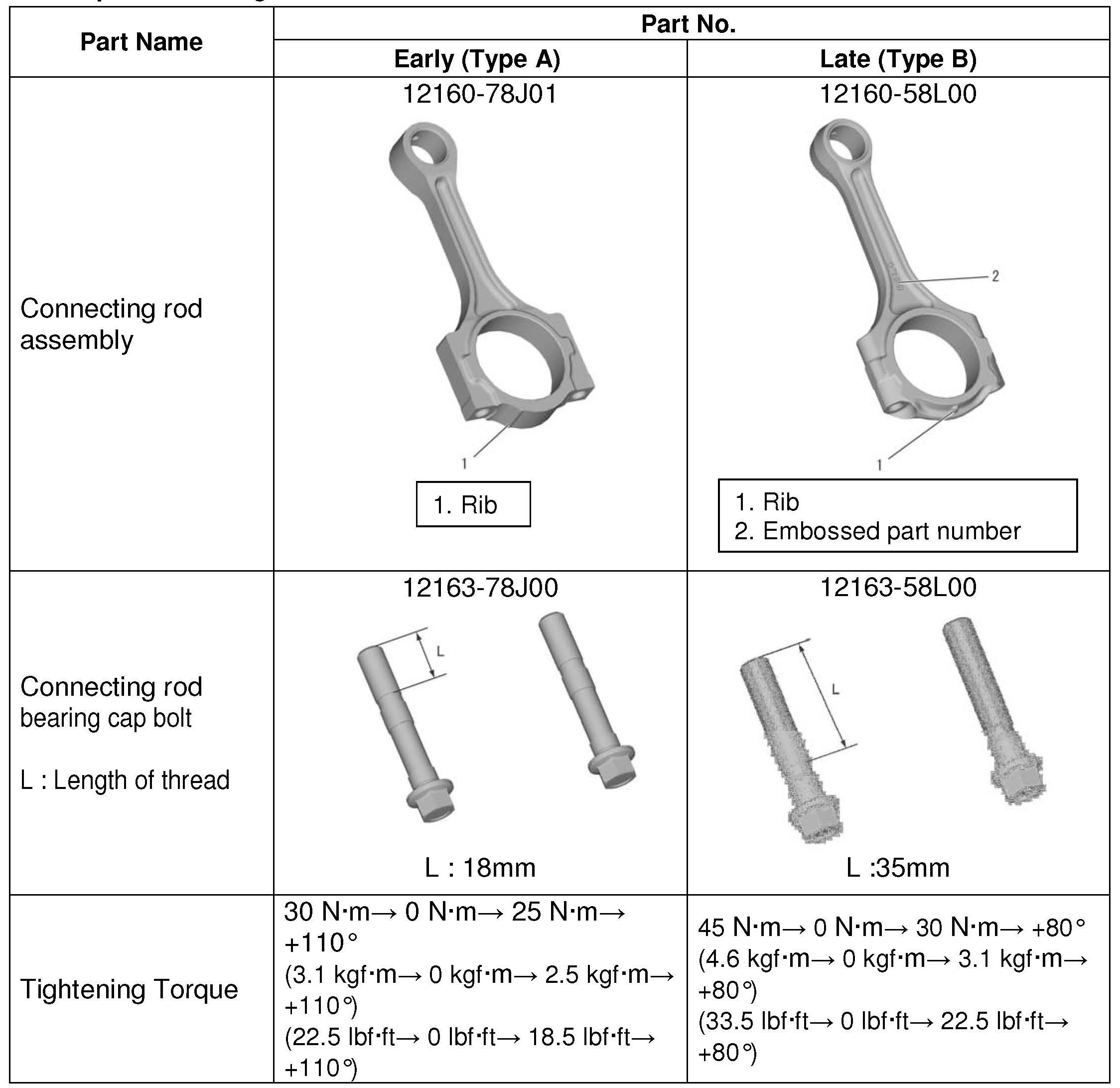

Description of changes

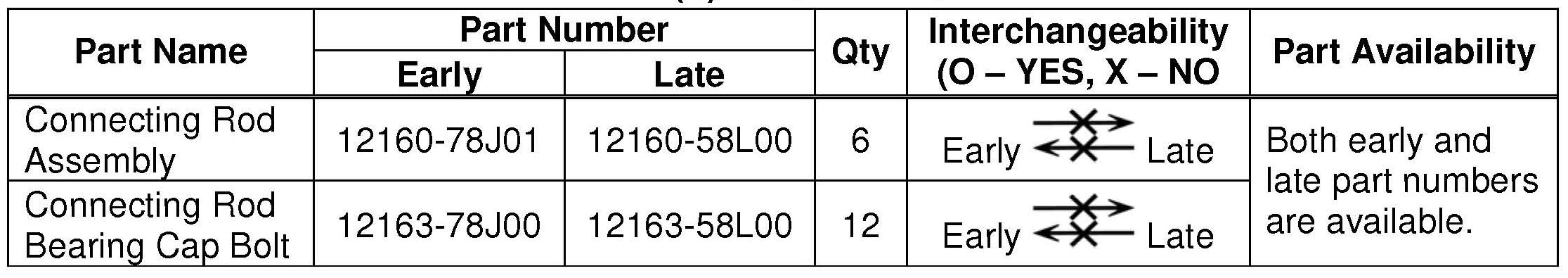

PART(S) INFORMATION:
