Oil Pan, Engine

Upper Oil Pan Bolts
Install upper oil pan to cylinder block and tighten upper oil pan bolts No.1, upper oil pan bolts No.2 and upper oil pan bolt No.3 by hand.

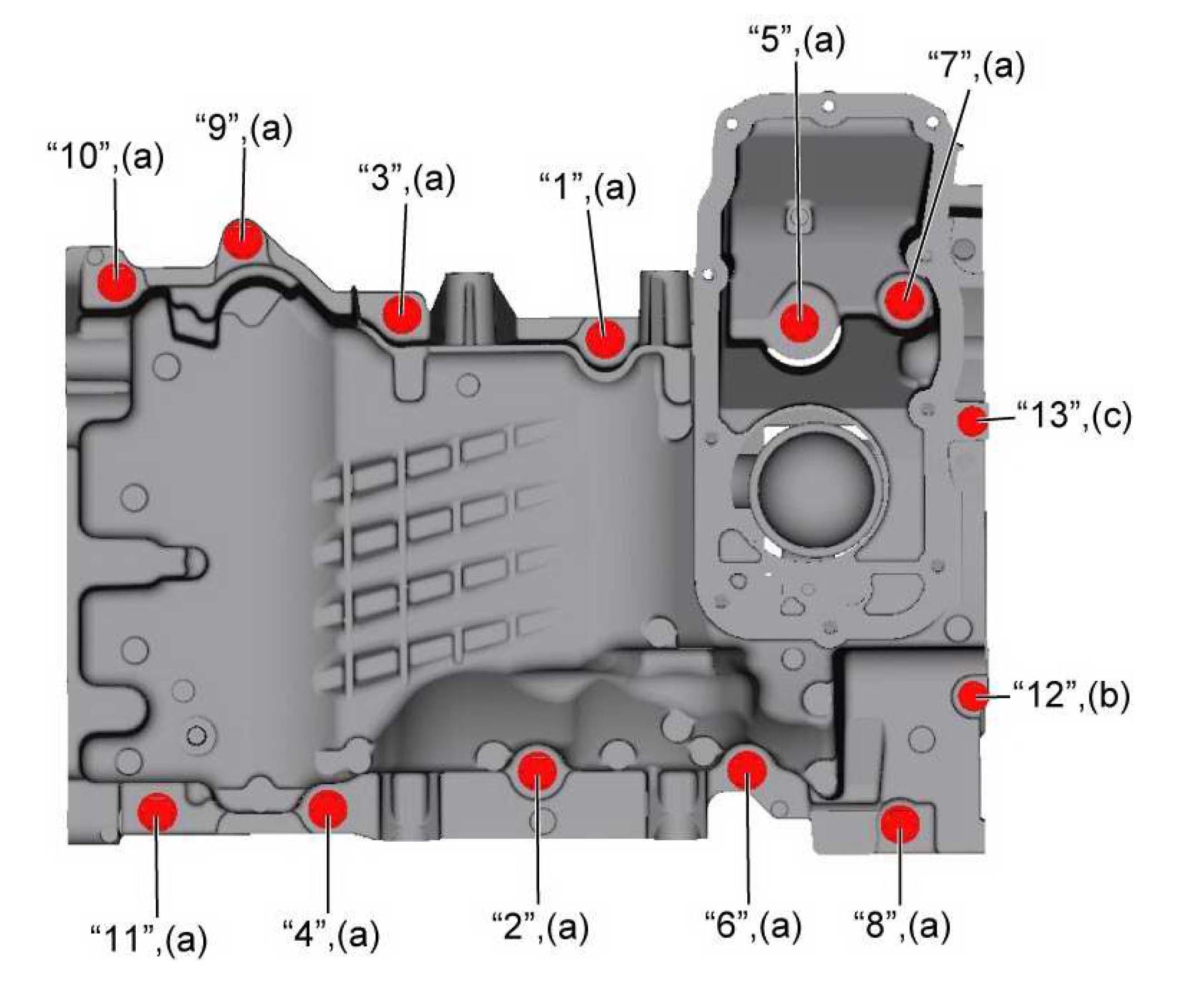

Tighten upper oil pan bolts No.1 ("1" - "4", "6" and "8" - "12"), upper oil pan bolts No.2 ("5" and "7") and upper oil pan bolt No.3 ("13") in numerical order as shown in figure to specified torques.
Upper oil pan bolt No.1* (a): 25 Nm (2.5 kg-m, 18.5 lbf-ft)
Upper oil pan bolt No.2* (b): 10 Nm (1.0 kg-m, 7.5 lbf-ft)
Upper oil pan bolt No.3* (c): 10 Nm (1.0 kg-m, 7.5 lbf-ft)





Lower Oil Pan Bolts
Install lower oil pan to upper oil pan and tighten lower oil pan bolts by hand.

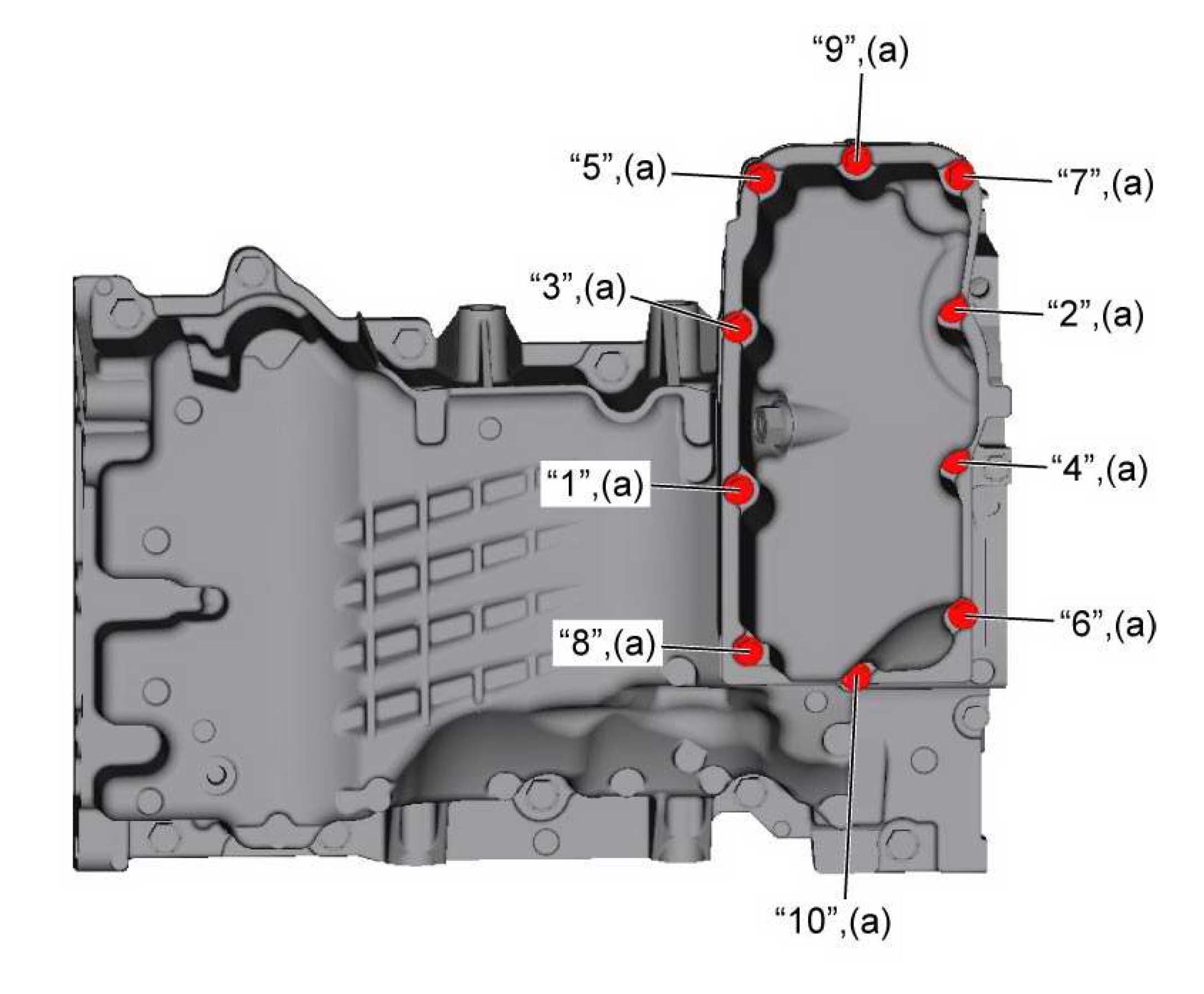

Tighten lower oil pan bolts ("1" - "10") in numerical order as shown in figure to specified torque.
Lower oil pan bolt* (a): 10 Nm (1.0 kg-m, 7.5 lbf-ft)
