Fuel System Check

Fuel System Check

NOTE: Before performing troubleshooting, be sure to read the Precautions of ECM Circuit Inspection:N32A. Precautions of ECM Circuit Inspection

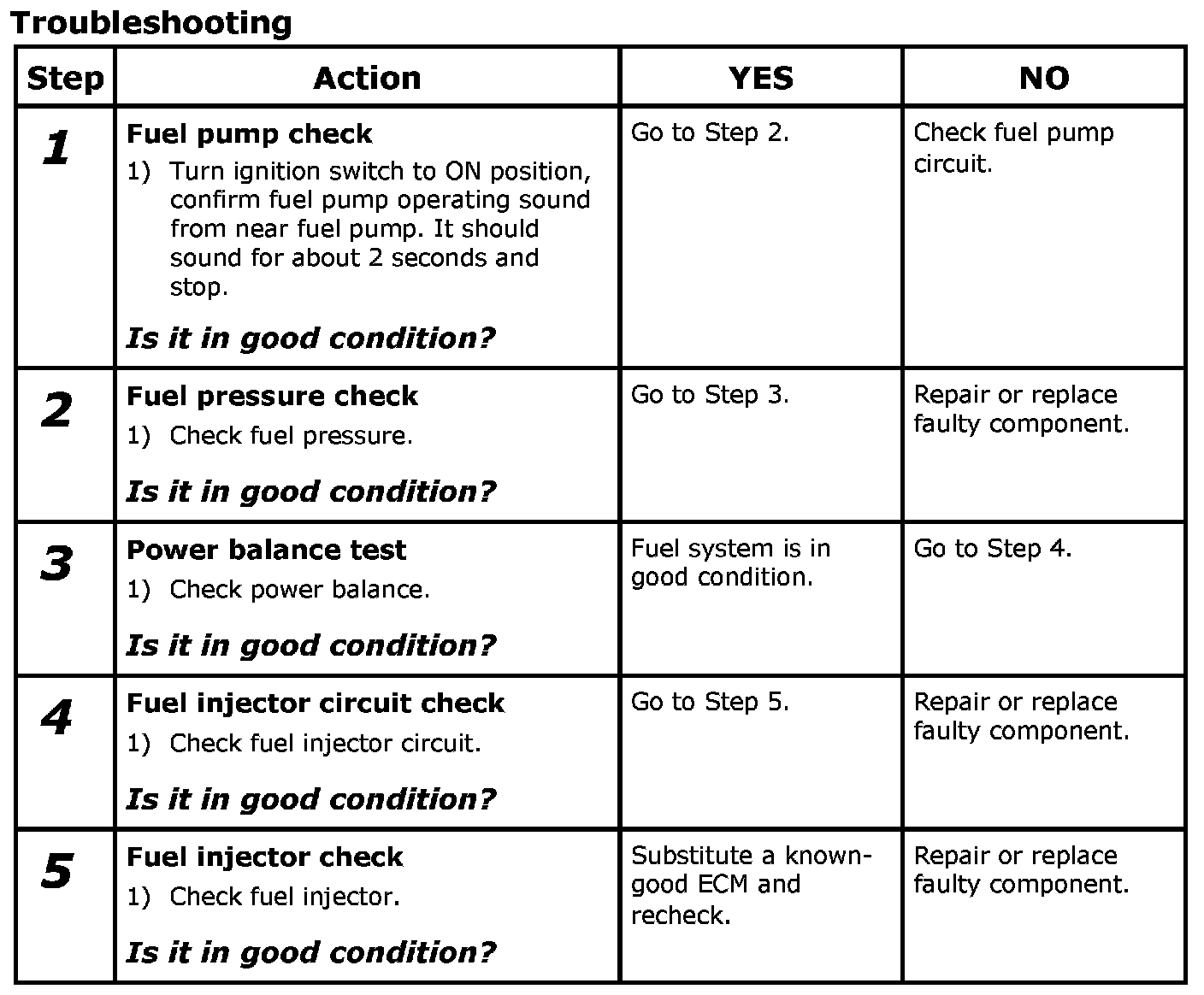

Troubleshooting

Step 1-5:
