Fuel Injector Circuit Check
Fuel Injector
Circuit Check

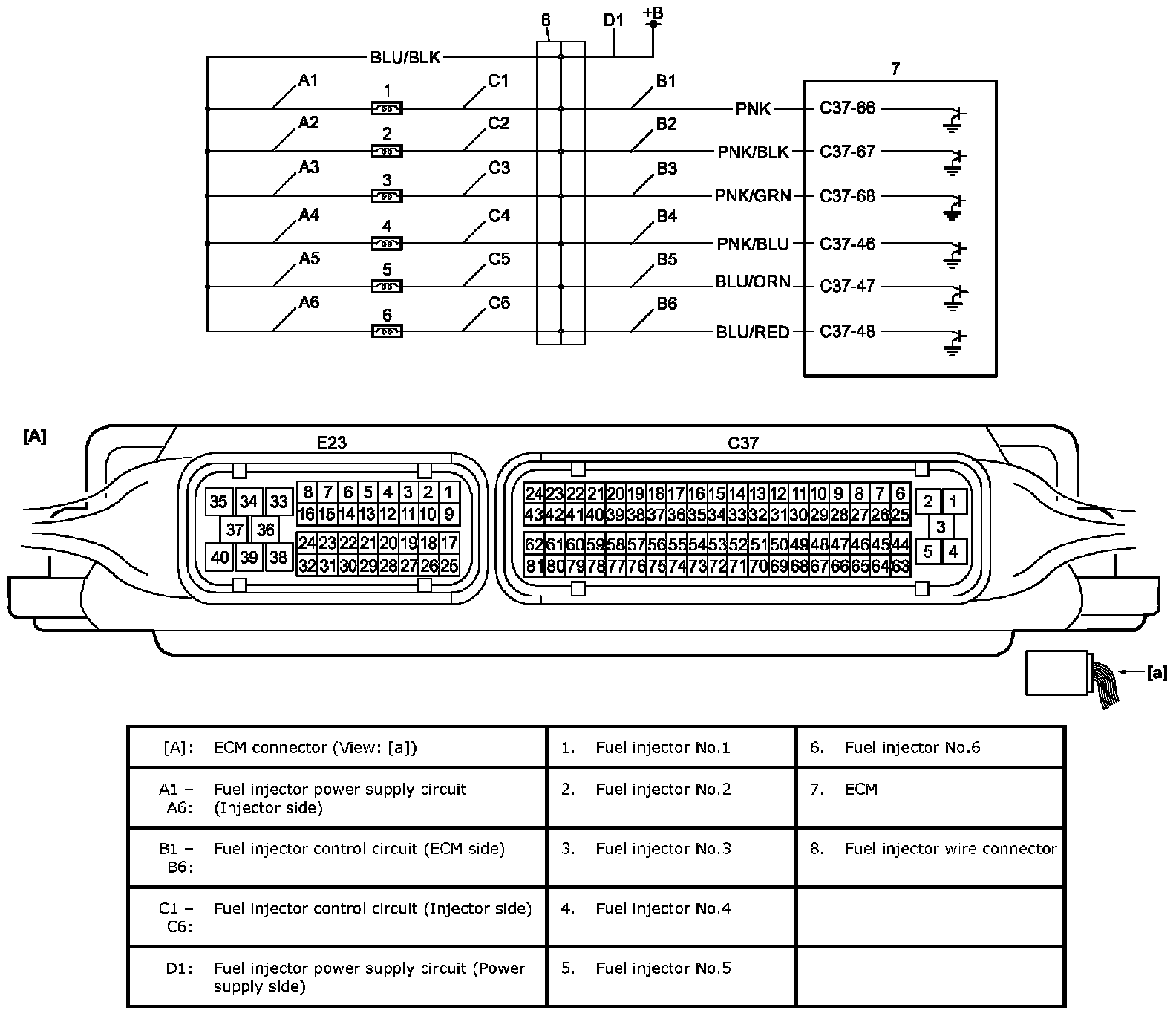

Wiring Diagram
Wiring Diagram:

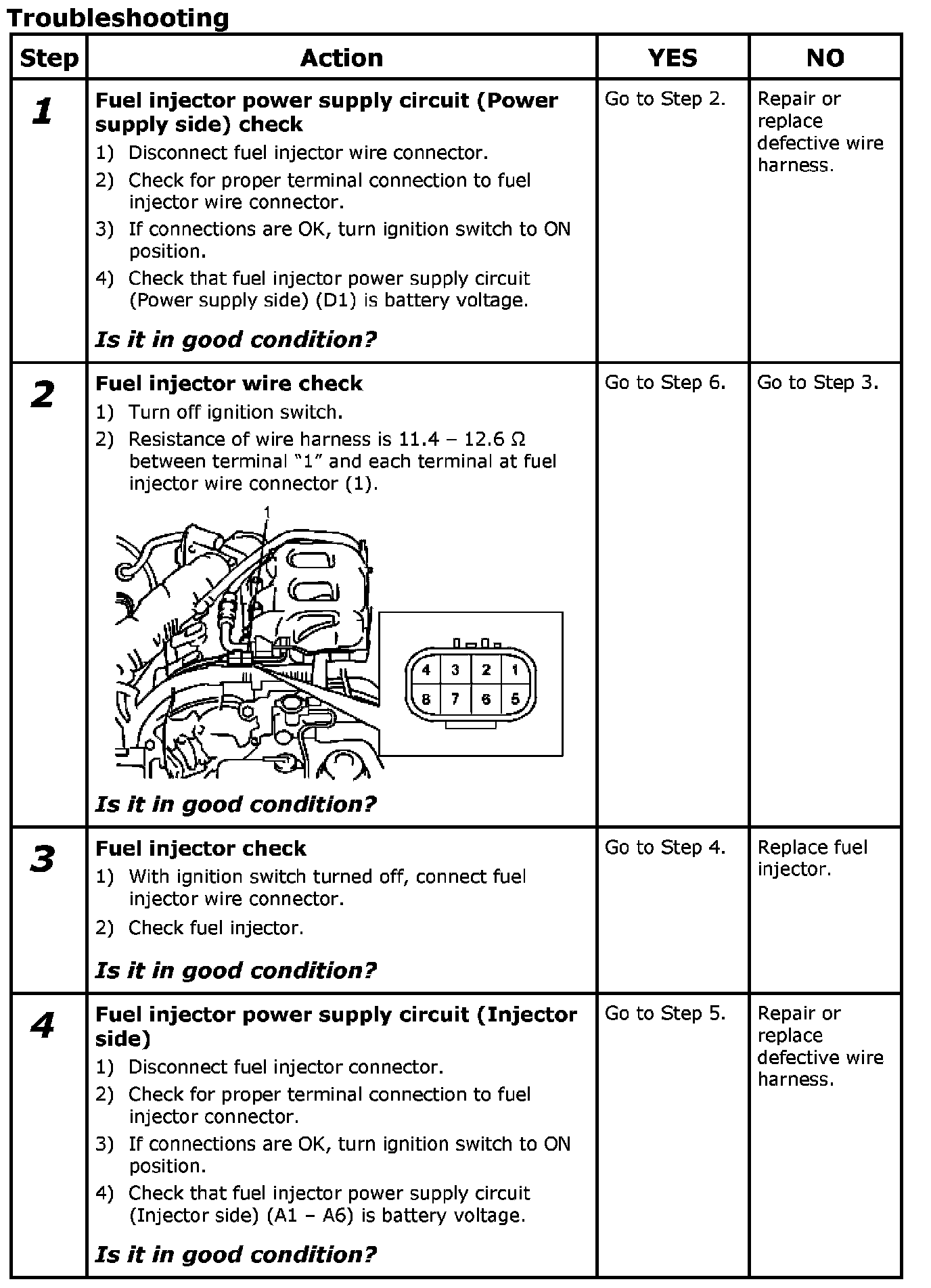

Troubleshooting
Step 1-4:

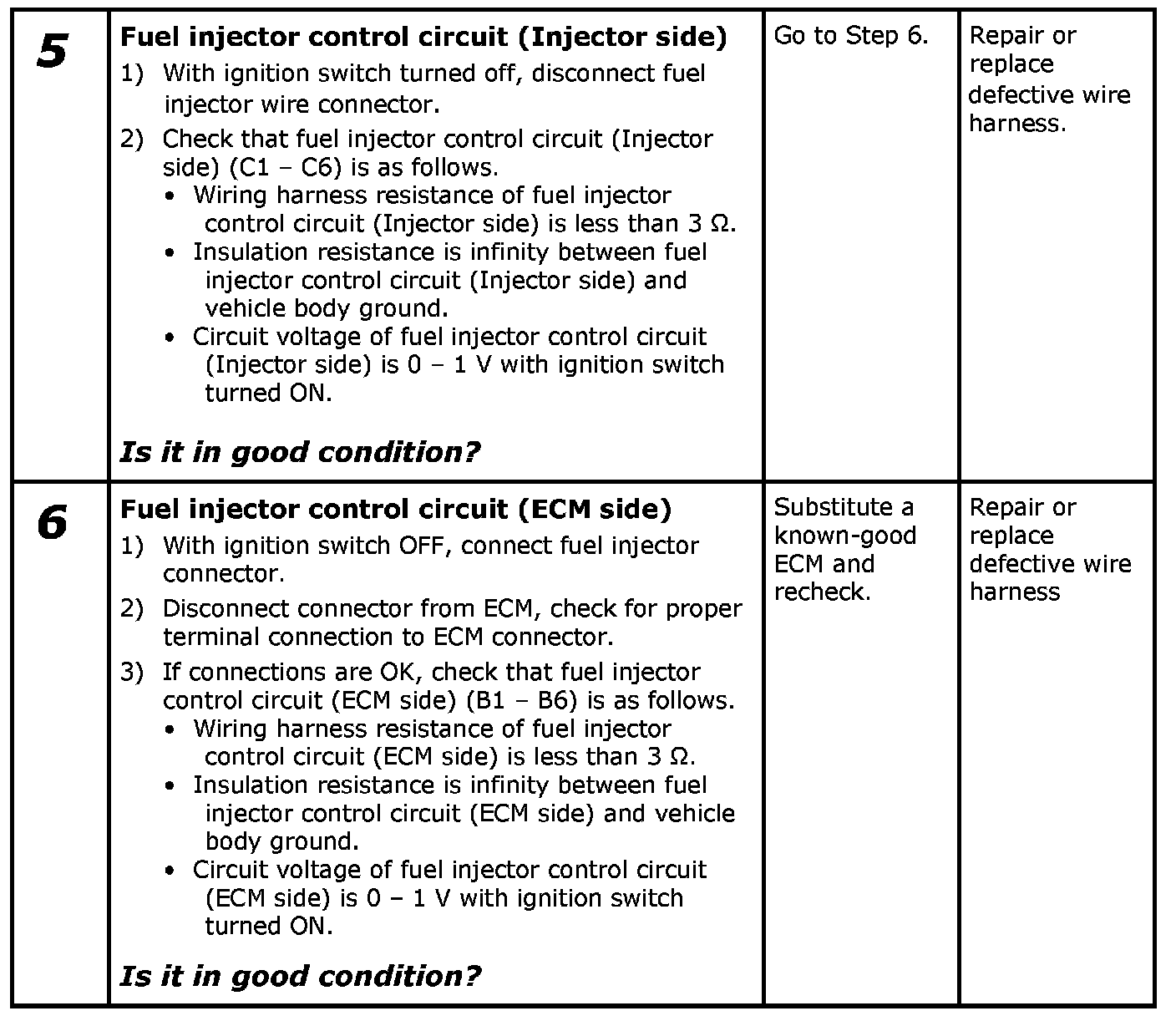

Step 5-6:
