Precaution For Identification of Cylinder and Bank

Precaution for Identification of Cylinder and Bank

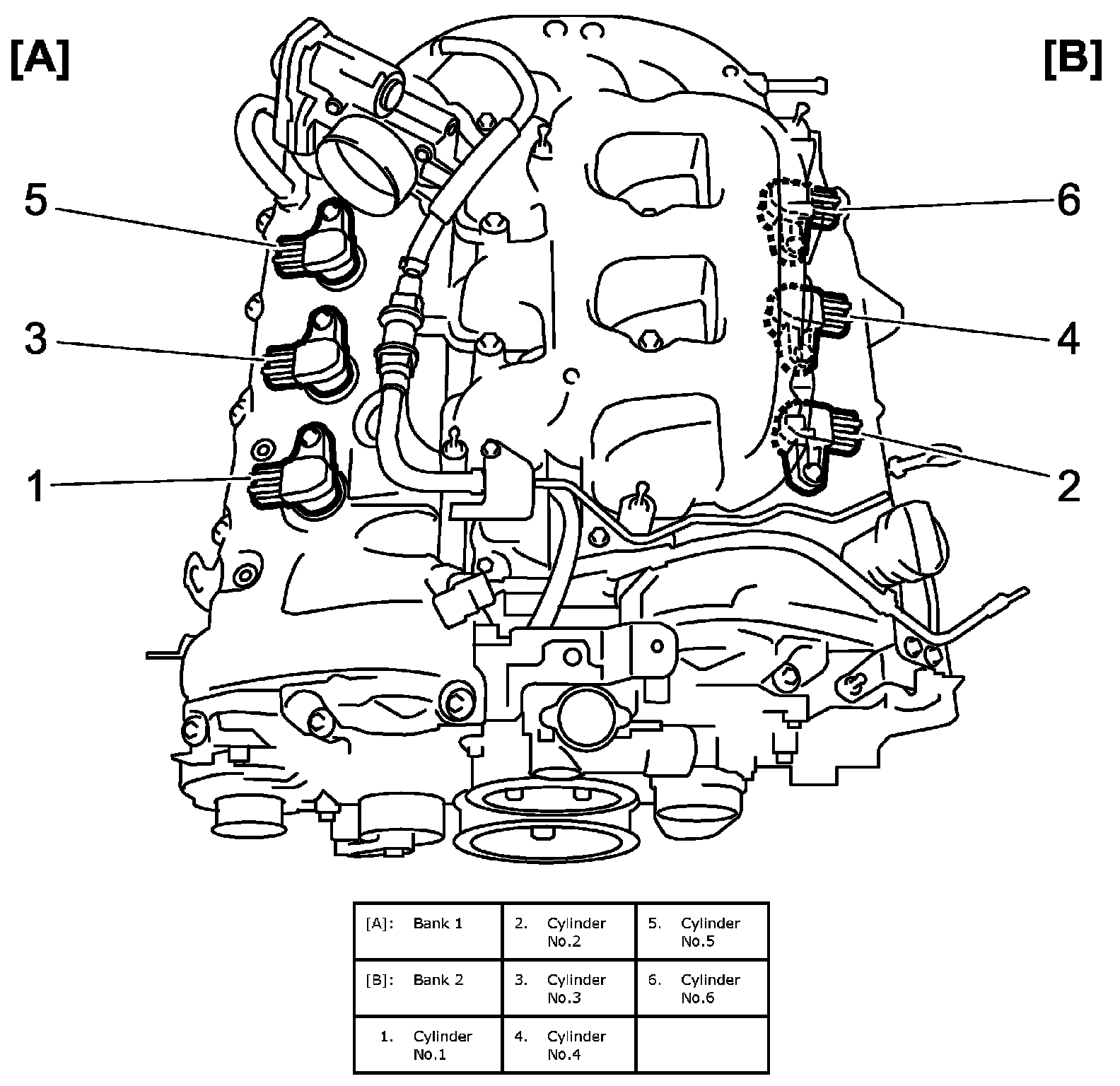

- N32A engine have six cylinders and each cylinder is identified by number (cylinder No.1 through No.6) as shown in figure below.
- N32A engine have two banks and each bank is identified by number (bank 1 and 2) as shown in figure below.
- Bank 1 (B1) includes cylinder No.1 and locates on right side as viewed from driver's seat.
