Computers and Control Systems: Locations

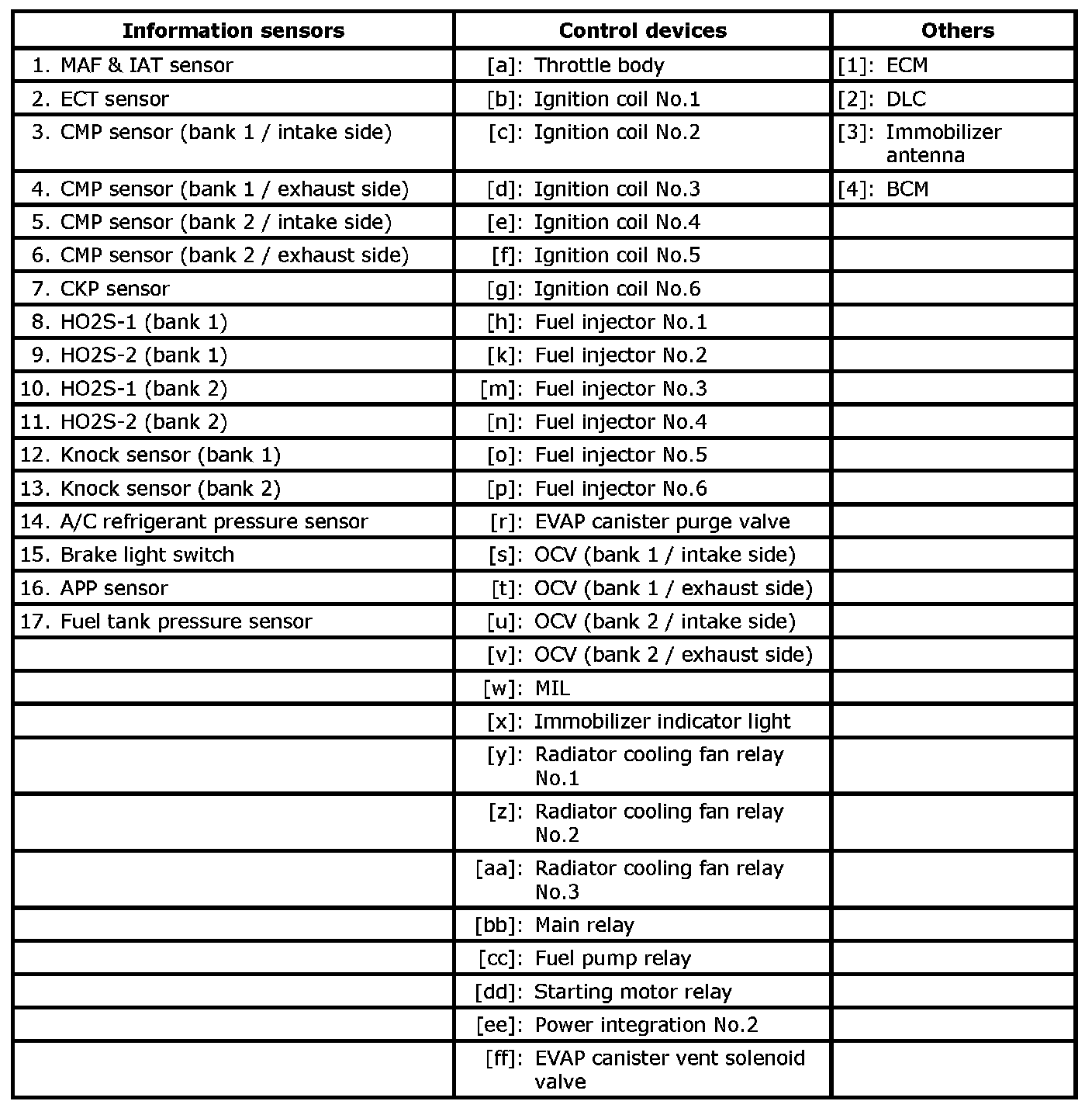

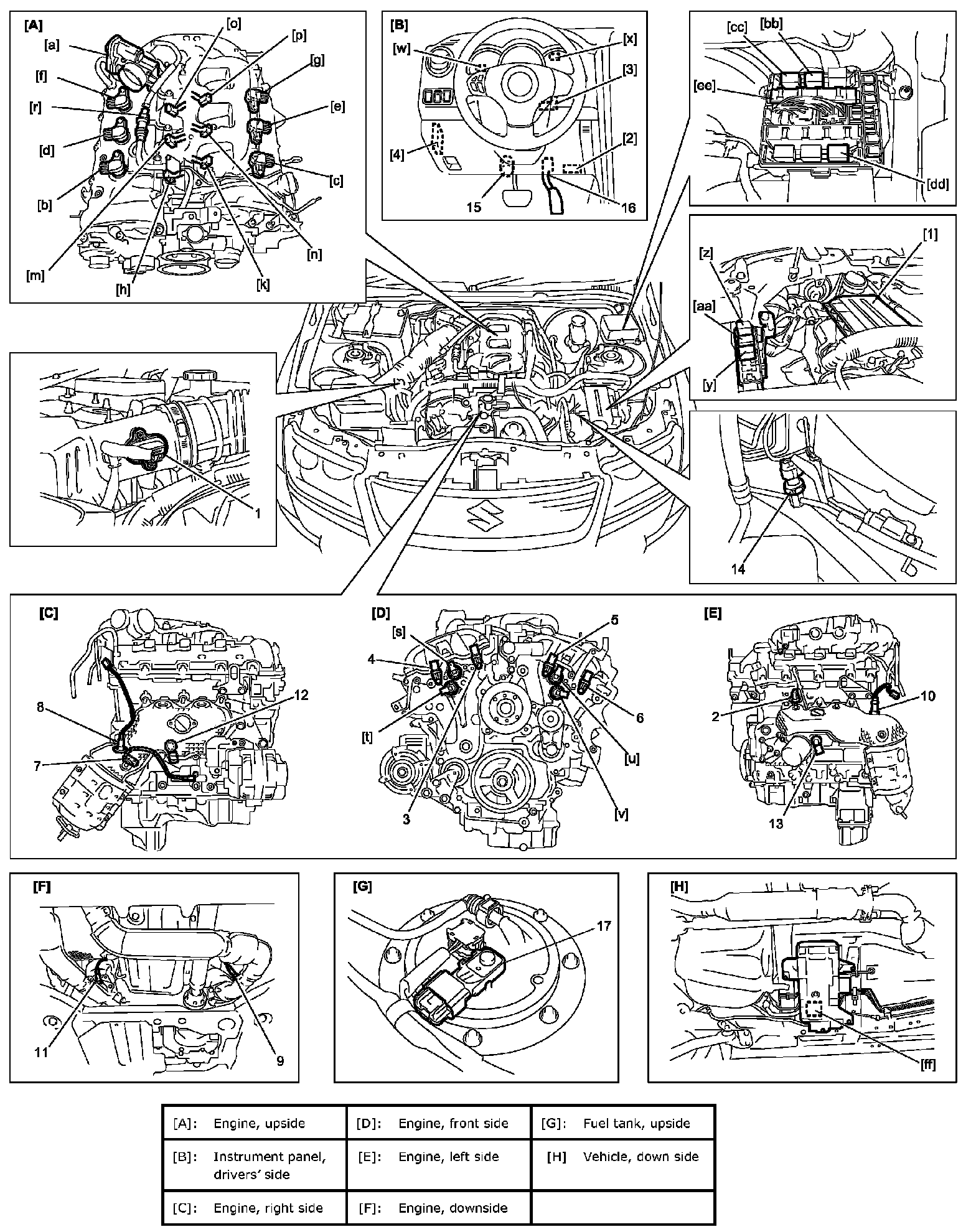

Electronic Control System Component Location

NOTE: For identification of each cylinder and bank, refer to Precaution for Identification of Cylinder and Bank:N32A.
