Timing Chain Cover Inspection

Timing Chain Cover Inspection

Reference: Timing Chain Cover Removal and Installation:N32A

Oil Seal
Check oil seal lip for damage. Replace as necessary.

Engine Block Heater Removal and Installation (Canadian Specification)

Removal

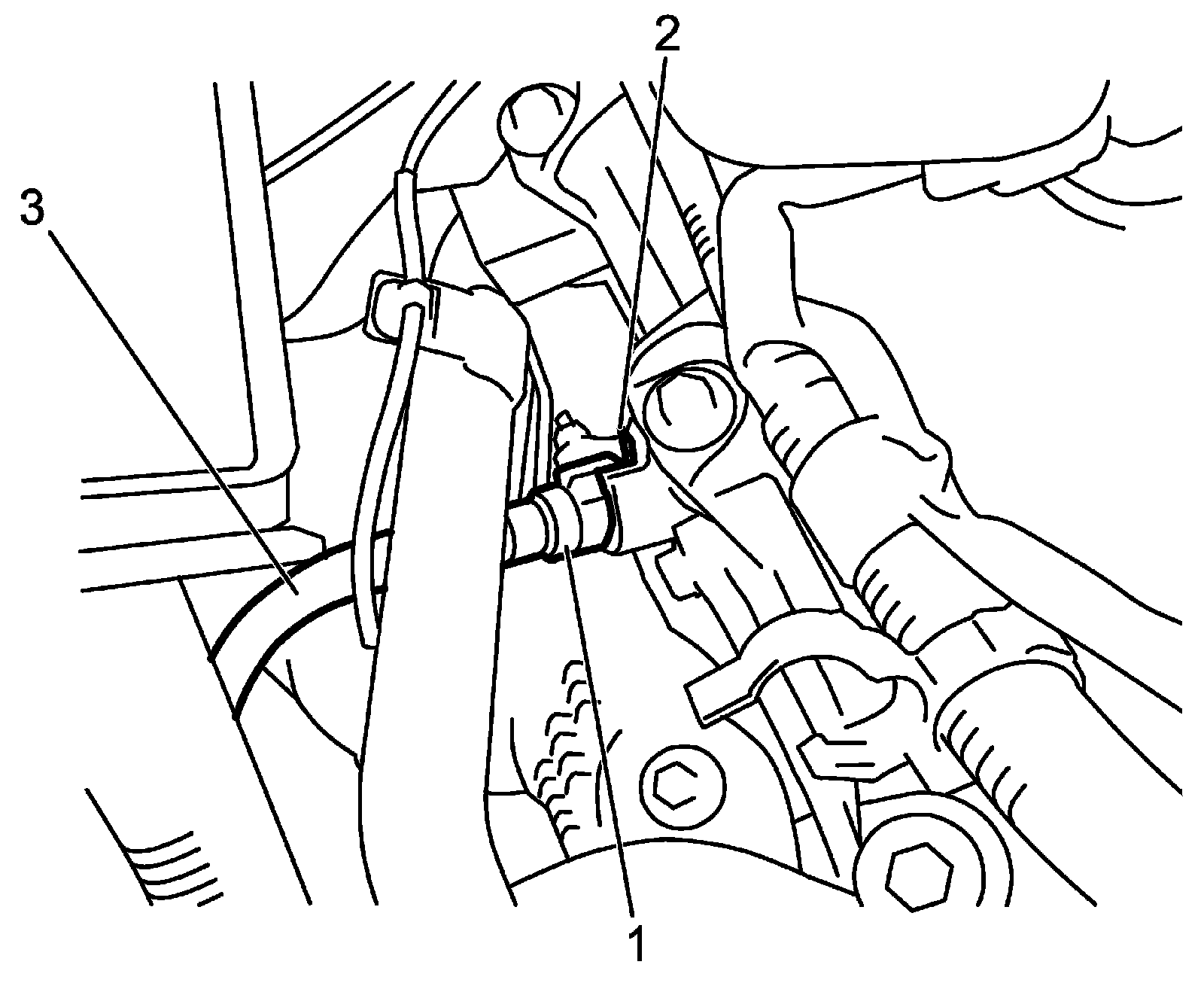

1) Remove engine block heater (1) while lock lever (2) is unlocked.
2) Disconnect engine block heater harness (3) from engine block heater.





Installation
Reverse removal procedure for installation.
